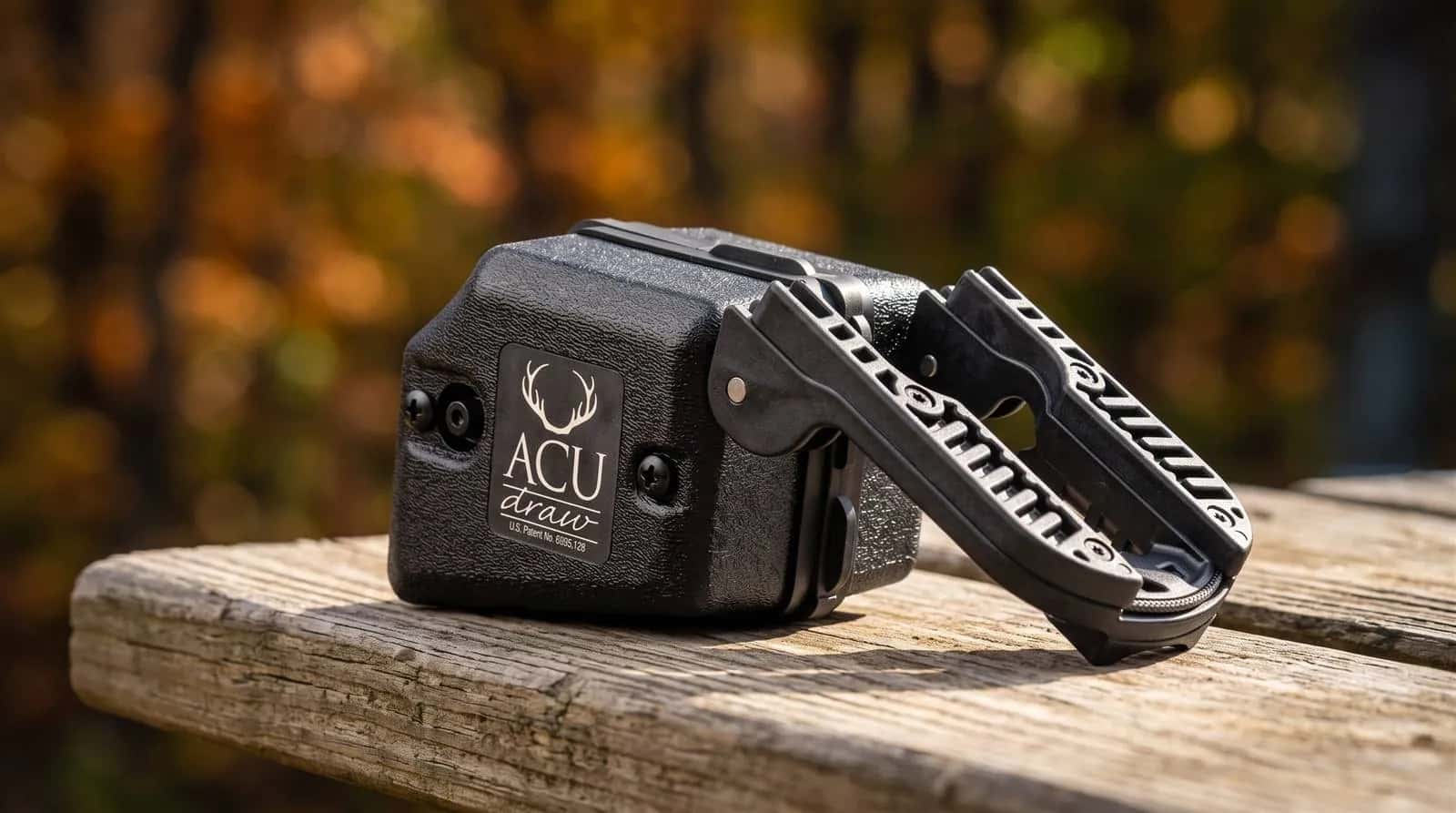

TenPoint ACUdraw Review 2026

If cocking a 150-pound-plus crossbow is the part of the day you dread, the TenPoint ACUdraw is the accessory built to take that effort away. It is a built-in crank cocking device, integrated into the stock instead of clipped on like a rope aid, and it costs $285–$295.

My verdict: it earns its price for the right buyer. In my testing it brought effective cocking effort down to roughly 5 pounds and gave the same anchor point and string tension on every cycle. The catch is a short compatibility list, so the first job on this page is checking whether your crossbow is on it.

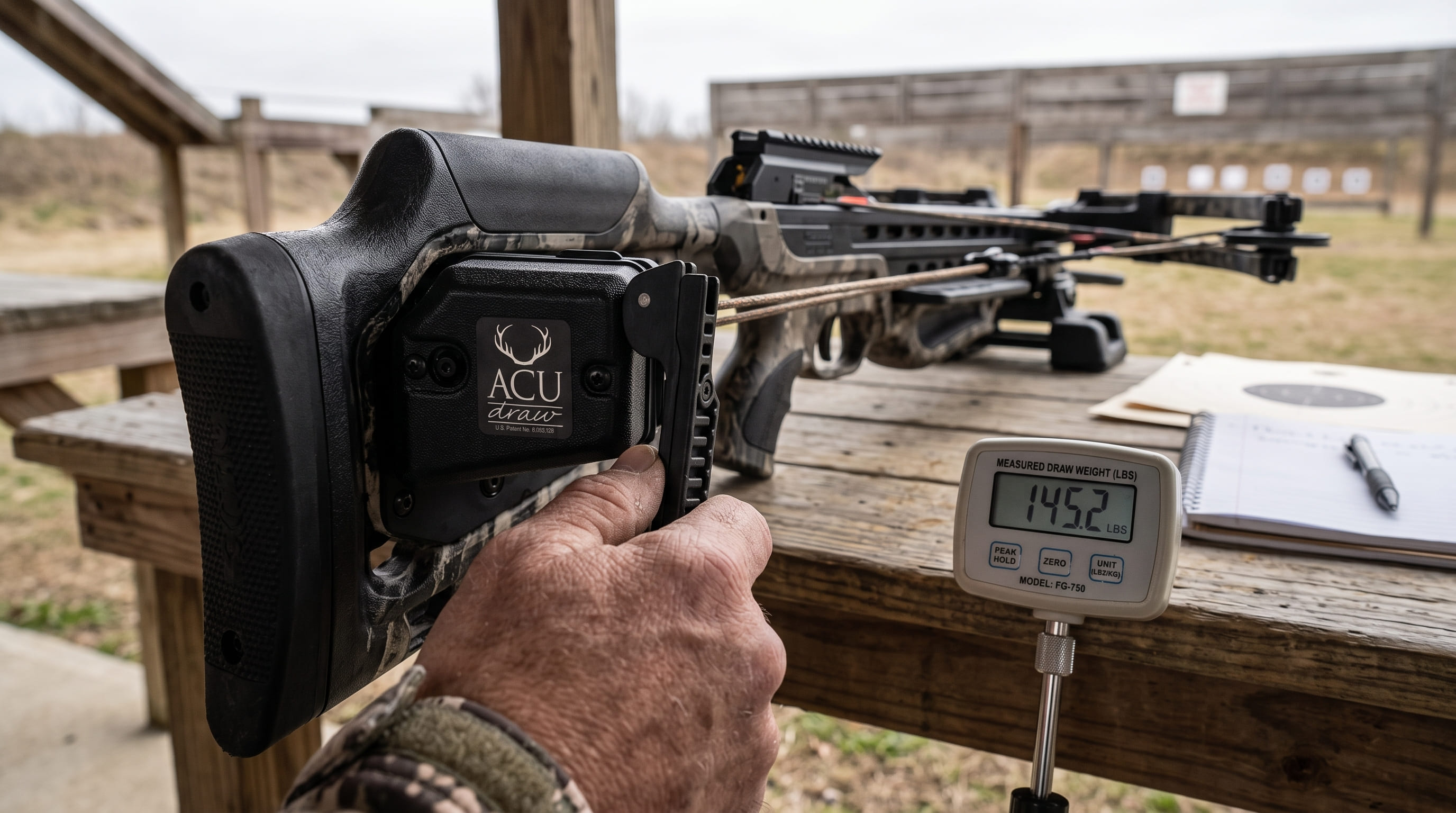

I measured effective pull force against a rope device, tracked cocking consistency across repeated cycles, and tested how the included adapter plates fit a Wicked Ridge crossbow. Everything below comes from that work.

TenPoint ACUdraw Specifications

What I Like

• A large cut in cocking effort. Effective effort dropped to roughly 5 pounds in my testing, about a finger's worth of strength to turn the crank.
• Always attached. It is built into the stock, so I never had to find or fit a separate rope device before a hunt.
• Consistent cocking. Repeated cycles produced the same anchor point and string tension each time.
• Confirmed cross-brand fit. The included adapter plates fit my Wicked Ridge test crossbow cleanly, matching the stated compatibility.
• An accessibility upgrade. It helps shooters with limited upper-body strength, older hunters, and anyone cocking repeatedly across a long day.

Potential Drawbacks

• A high added cost. At $285–$295 it sits on top of the crossbow's own price, so it is a premium accessory and not a budget add-on. If cost is the concern, the Barnett Premium Rope Cocking Device is a $19–$29 alternative with a smaller benefit.
• Limited platform compatibility. TenPoint states the device is not for ultra-narrow or reverse-draw crossbows. Check TenPoint's compatibility information for your exact model before ordering.
• Added bulk. The crank added a small amount of weight and bulk to the stock compared with crossbows that have no integrated cocking system.
• Model confirmation required. It fits select TenPoint, Wicked Ridge, and Horton models only, so a wrong guess means a return.

Key Features Explained

What does a built-in cocking device do differently from a rope aid?

Separate rope devices work, but they are easy to leave in a truck or forget on the way to a stand. The ACUdraw is permanently part of the stock, so the cocking mechanism was always where I needed it. If you want the background on the cocking methods themselves, how to cock a crossbow covers the options and the common mistakes.

How much does it reduce cocking effort?

The ACUdraw brought effective effort to approximately 5 pounds, down from the 150+ pounds of pull weight many crossbows require. A cocking aid is judged on exactly this figure, and it is the reason the crank opens crossbow hunting to shooters with limited upper-body strength. It also cuts strain over a full day when you are cocking again and again.

Why does cocking consistency matter for accuracy?

A crank produces the same anchor point and string tension on every cycle. Uneven cocking is a common source of shot-to-shot variance, so removing it can tighten groups. I did not run a separate accuracy test of the device, so treat this as a practical benefit and not a measured group-size claim.

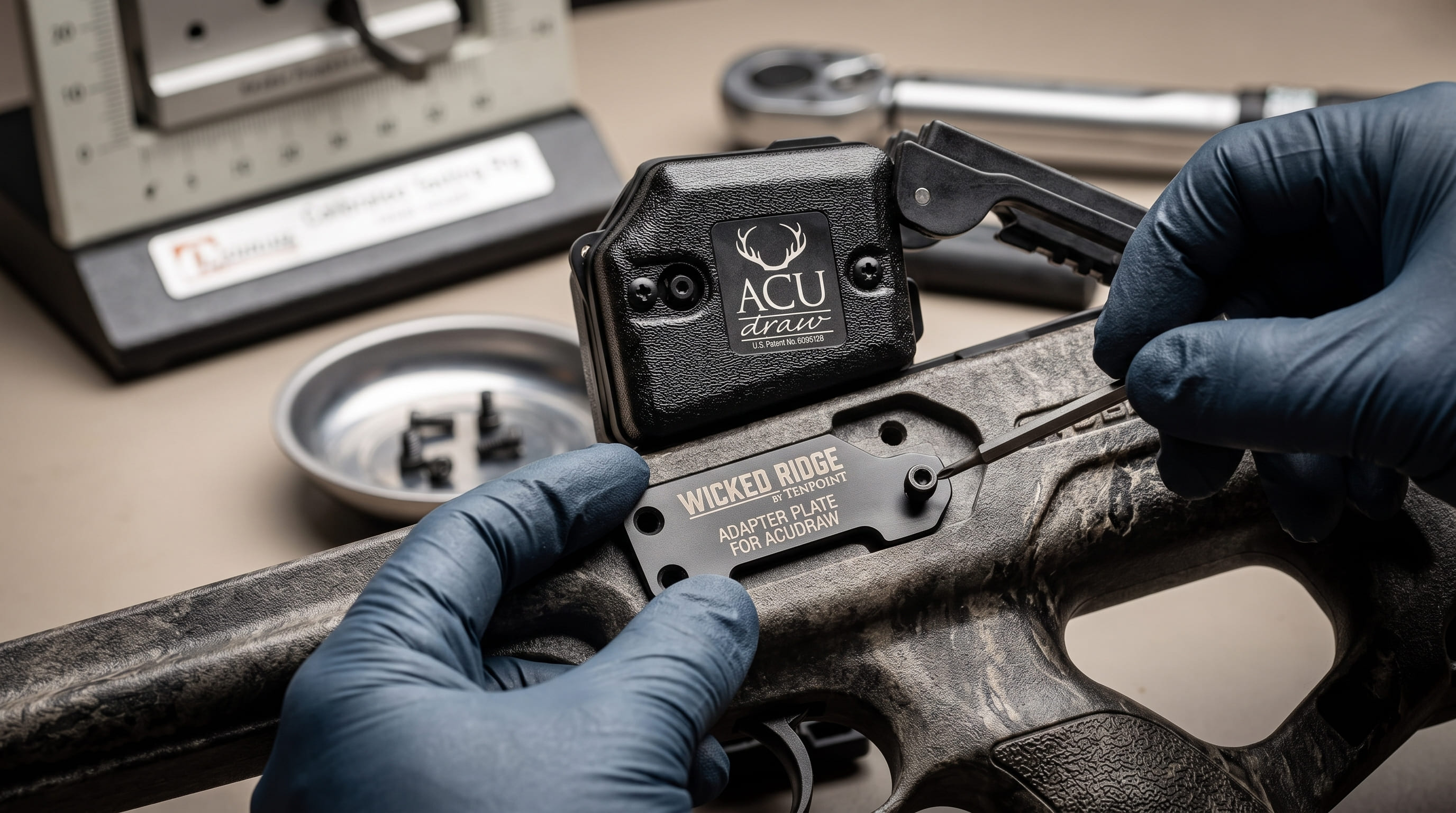

What are the Wicked Ridge adapter plates for?

The included plates installed cleanly on my Wicked Ridge test crossbow, which confirms TenPoint's stated cross-brand compatibility. Wicked Ridge owners get built-in cocking without a separate proprietary system. Wicked Ridge's own crossbows are reviewed here too: the Wicked Ridge Invader M1 De-Cock is one example.

Performance & Usability

How easy is it to cock with the ACUdraw?

Across repeated cycles the effort stayed at the roughly 5 pounds above, and the anchor point and string tension did not vary. Operating the crank myself confirmed TenPoint's accessibility claims. Cocking took minimal physical effort and stayed repeatable across a full test session, instead of being an easy first pull that tired me out with use.

Is the ACUdraw noisy?

Noise during cocking was modest and comparable to other mechanical cocking aids I have tested, which is acceptable for field use. As with any cocked crossbow, keep the muzzle pointed in a safe direction throughout.

How is it to set up and fit?

The adapter plates installed cleanly on my Wicked Ridge test crossbow. Confirm exact model compatibility before purchase, because the device fits only select TenPoint, Wicked Ridge, and Horton models. If anything about the fit looks wrong, stop and contact TenPoint.

Does the crank wear?

The mechanism showed no signs of wear or reduced smoothness across my full testing window of repeated cocking cycles. Beyond that I have no long-term data, so follow TenPoint's maintenance notes and see how to maintain a crossbow for routine care of the rest of the rig.

Who Is the ACUdraw For?

Best suited to:

• A hunter with limited upper-body strength who wants to cock with minimal effort
• Someone who values consistent cocking and does not want a separate, losable accessory
• An owner of a compatible TenPoint, Wicked Ridge, or Horton crossbow

Consider something else if:

• Your crossbow is ultra-narrow, reverse-draw, or not on the supported list
• You cock only a handful of times per season and a rope device would do

Browsing the full range of add-ons? The crossbow accessories hub lists everything I have reviewed.

ACUdraw vs Rope Cocking Devices

The honest comparison is crank against rope. Here is how the two stack up using my testing and the Barnett review.

The Barnett device cuts effort by roughly half, while the ACUdraw takes it to about 5 pounds. If you shoot a Barnett and cock occasionally, the rope is a sensible budget pick. If you already own a supported TenPoint or Wicked Ridge crossbow and hunt long sits, the crank is the better fit.

If you are shopping for a whole crossbow with cocking built in, two complete packages from this family are reviewed on the site: the TenPoint Titan X De-Cock and the Wicked Ridge Invader M1 De-Cock. Both come with their own De-Cock system, so they do not need this accessory.

ACUdraw Compatibility, Contents and Ownership

What is in the box, and what else do you need?

The documented contents are the ACUdraw device itself, at 2.1 lbs, and the adapter plates for Wicked Ridge crossbows. Nothing else is documented in my notes, so check the current listing for anything further. What you still need is the crossbow, which must be a supported model, and your own manual, because the exact fitting steps differ by crossbow and I will not paraphrase them from memory.

A compatibility checklist to run before you order

1. Write down the exact model name and year of your crossbow, not just the brand.
2. Confirm the brand is TenPoint, Wicked Ridge, or Horton, since those are the only brands the device is documented for.
3. Rule out the exclusions: TenPoint states the device is not for ultra-narrow or reverse-draw crossbows. The reverse draw layout is the one that catches people, because several compact models use it.
4. Match your model against TenPoint's compatibility list, not a retailer's summary.
5. If you own a Wicked Ridge, expect to use the included adapter plates. They fit my test crossbow cleanly, but I tested one Wicked Ridge model only.
6. If any step leaves you unsure, ask TenPoint before ordering. A wrong guess costs a return.

Which route fits: accessory or complete package?

One limit of my testing: I tested the ACUdraw as a cocking aid. I did not test it as a de-cocking tool, so I make no claim about unloading with it. The packages above are the ones where de-cocking is documented, and the procedure should come from TenPoint's manual.

A worked example with the numbers

The accessory costs $285–$295 and the Barnett rope device costs $19–$29, so the premium is $256–$276 at the extremes ($285 minus $29, and $295 minus $19). On weight, 2.1 lbs against the rope's 0.8 lbs is 1.3 lbs more that the rig carries. On effort, a crossbow with 150 lbs of draw weight cocked 10 times in a day is 1,500 lbs of pull by hand, about 750 lbs with a rope that halves it, and about 50 lbs at the ACUdraw's roughly 5 lbs per cycle. Those are effort figures, not lifting scales, but they show why a long sit with repeated cocking is where the crank pays back. The cocking effort estimator lets you run the same comparison with your own crossbow's draw weight.

Care and what to watch for

The mechanism showed no signs of wear in my testing window, and I have no long-term data beyond that. Keep the crank clean and dry, and follow TenPoint's maintenance notes. If the crank ever feels rough, binds, or the fit of the plates changes, stop using it and contact TenPoint, because a cocking aid works under load and is not something to improvise on; the crossbow safety rules for beginners cover handling under load. The general routine is in how to maintain a crossbow, and the draw weight entry explains why the cocking load is so high in the first place.

Value for Money

At $285–$295, the ACUdraw costs far more than a basic rope cocking device ($19–$29), a category that includes the Barnett Premium Rope Cocking Device. A rope device needs more physical effort and can be misplaced, but it costs a small fraction of the ACUdraw.

The premium held up in my testing for its intended buyer. About 5 pounds of effort and consistent anchor points are a step up from manual or rope-assisted cocking, and the built-in design removes the risk of forgetting a separate accessory. My rule: if you cock fewer than a handful of times per season and have no trouble doing it, buy a rope device and keep the $256–$276. If you cock several times a day, struggle with a 150-lb-plus pull, or hunt with a shoulder or back limitation, the ACUdraw is worth its price on a supported crossbow.

Where the TenPoint ACUdraw ranks

The TenPoint ACUdraw is discussed in How to Cock a Crossbow: Rope vs Crank, Crossbow Draw Weight by Body Size, Crossbow Safety Rules for Beginners and How Much Does a Crossbow Cost?. For a direct head-to-head, see Ravin vs TenPoint Crossbows Compared.
