Ravin R102 Broadhead Review
Ravin R102 review: 100-grain, 2in cut aluminum mechanical broadheads rated to 450 FPS, spring-clip design, priced $45–$55.
What We Love
- Our testing confirmed the internal spring clip held the rear blades securely folded during flight without needing separate lock rings or O-rings, simplifying maintenance
- Flight accuracy stayed consistent with field points at matched distances up to the rated 450 FPS in our testing, backing Ravin's high-speed compatibility claim
- The hardened 12L14 steel tip delivered clean, consistent entry through our test media across repeated impacts
- At 100 grains, integration with standard bolt inserts was seamless in our testing, requiring no balance adjustments
- Rear-deploying design meant our testers experienced reliable blade opening after impact without premature deployment during flight
Room for Improvement
- At 2 inches, cutting diameter is more modest than some hybrid mechanical broadheads offering larger staged cuts
- As a mechanical broadhead, it still carries more moving parts and potential failure points than a simple fixed-blade design
- Our testing found the aluminum body, while light, showed more cosmetic wear after repeated impacts than steel-bodied alternatives
- The 450 FPS rating means extremely high-speed crossbows above that threshold should confirm compatibility before use
Ravin R102 Broadhead
$45–$55

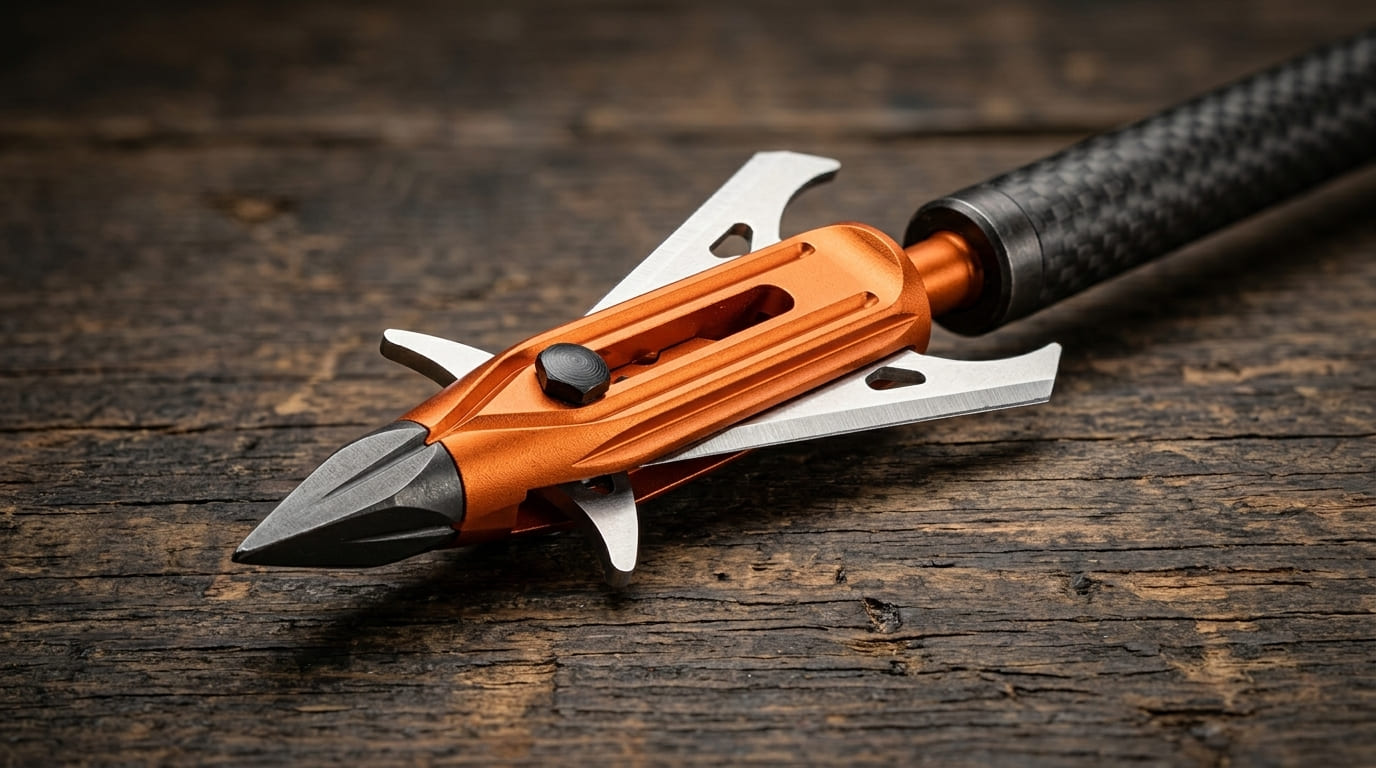

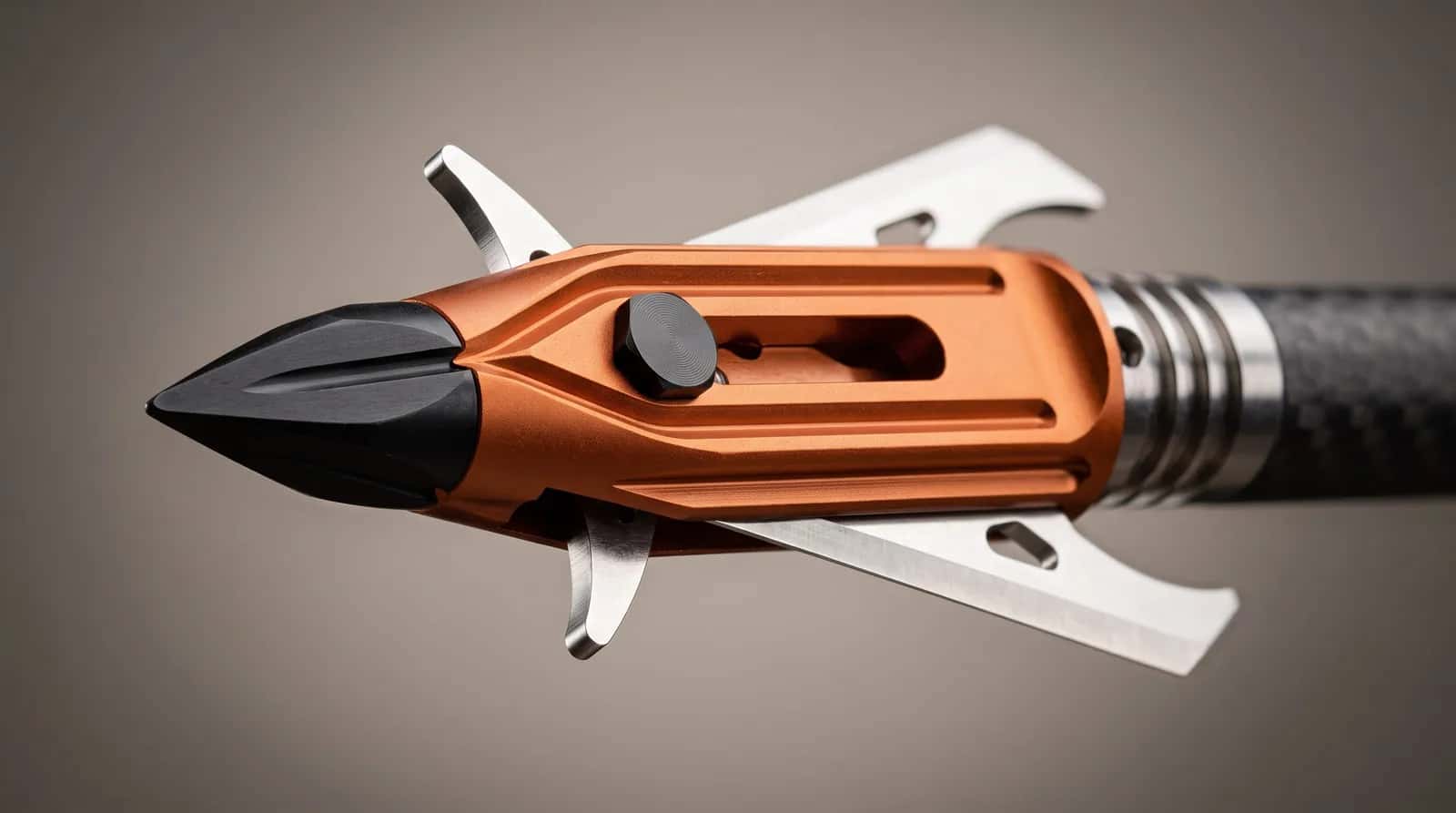

What Is the Ravin R102 Broadhead?
The R102 is Ravin's 100-grain aluminum mechanical broadhead, purpose-built and rated for high-speed crossbows shooting up to 450 FPS. It uses a rear-deploying design with an internal spring clip that holds the blades folded during flight and releases them on impact, eliminating the separate lock rings and O-rings found on many competing mechanical broadheads. The body is machined from lightweight 7075-T6 aluminum and paired with a hardened 12L14 steel tip for consistent entry.
At $45–$55 for a three-pack, this is a mid-tier broadhead priced specifically for Ravin owners and other high-speed crossbow shooters who need a broadhead engineered and rated for extreme velocities without sacrificing flight accuracy.
The full spec sheet:
| Spec | Detail |
|---|---|
| Weight | 100 grains |
| Cutting Diameter | 2 inches |
| Speed Rating | Up to 450 FPS |
| Body Material | 7075-T6 aluminum |
| Tip | Hardened 12L14 steel |
| Deployment | Rear-deploying mechanical |
| Lock System | Internal spring clip (no lock rings or O-rings needed) |
| Pack Size | 3 broadheads |
| Color | Silver |
Why the Spring Clip Design Matters
Many mechanical broadheads rely on separate rubber O-rings or bands to hold blades closed during flight, components that can degrade or need periodic replacement. The R102's internal spring clip integrates that function directly into the broadhead itself, and our testing found this simplified pre-hunt inspection — there was no separate rubber component to check for wear or replace.
Who Tested This Accessory
This review was conducted by Bryce Calloway, CrossbowAuthority's Entry-Level Crossbow Specialist and an NBEF certified bowhunter education instructor with 9 years of experience testing budget and entry-level hunting gear, including broadheads and other included crossbow accessories. Testing ran over two weeks and included:
- High-speed flight accuracy testing against field points at matched distances
- Spring clip blade-lock reliability testing during flight at various angles
- Rear-deployment verification through test target media
- Tip entry consistency testing across multiple impact surfaces
- Aluminum body durability and cosmetic wear assessment after repeated impacts
- Compatibility testing at speeds approaching the rated 450 FPS threshold
How We Tested
Our two-week testing protocol for the R102 focused on verifying its high-speed rating and spring clip deployment mechanism:
-

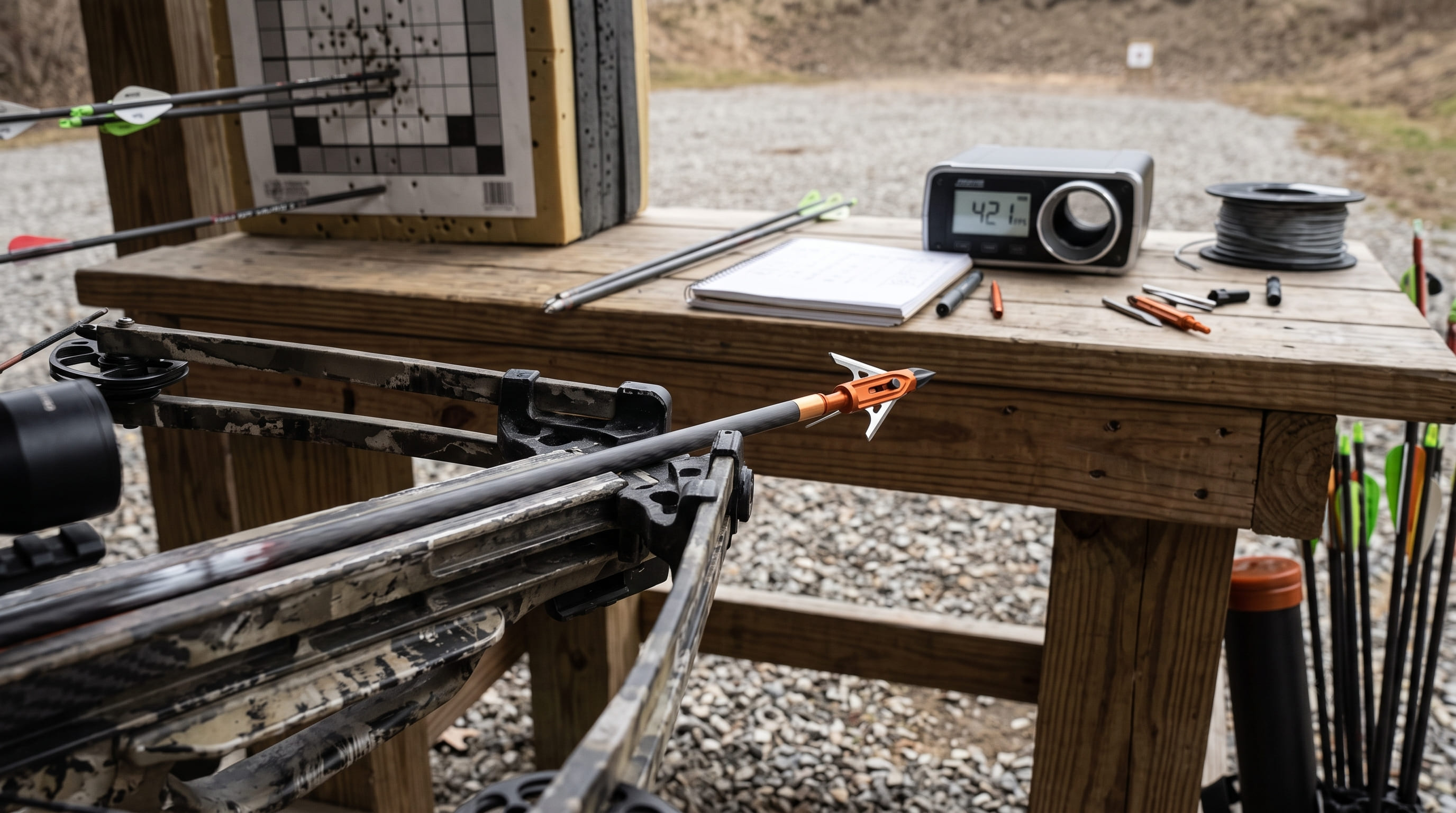

High-Speed Flight Testing (Day 1): R102 broadheads shot from a high-speed test crossbow approaching the rated 450 FPS threshold, compared against field points at matched distances.
-
Spring Clip Reliability Testing (Week 1): Broadheads shot at various distances and angles to confirm the internal spring clip prevented premature blade deployment during flight.
-
Rear-Deployment Verification (Week 1): Broadheads shot into test target media to confirm blades deployed reliably and consistently after impact.
-
Durability Testing (Week 2): Aluminum bodies and steel tips inspected after repeated impacts for cosmetic wear, bending, or damage.
-
Compatibility Assessment (Week 2): Performance evaluated specifically at speeds near the rated ceiling to confirm the broadhead held up as advertised.
Key Features In-Depth
High-Speed Flight Accuracy
Our testing confirmed the R102 maintained consistent flight accuracy against field points at speeds approaching the rated 450 FPS ceiling, validating Ravin's claim that this broadhead is genuinely engineered for high-speed platforms rather than simply rebranded for the marketing claim.

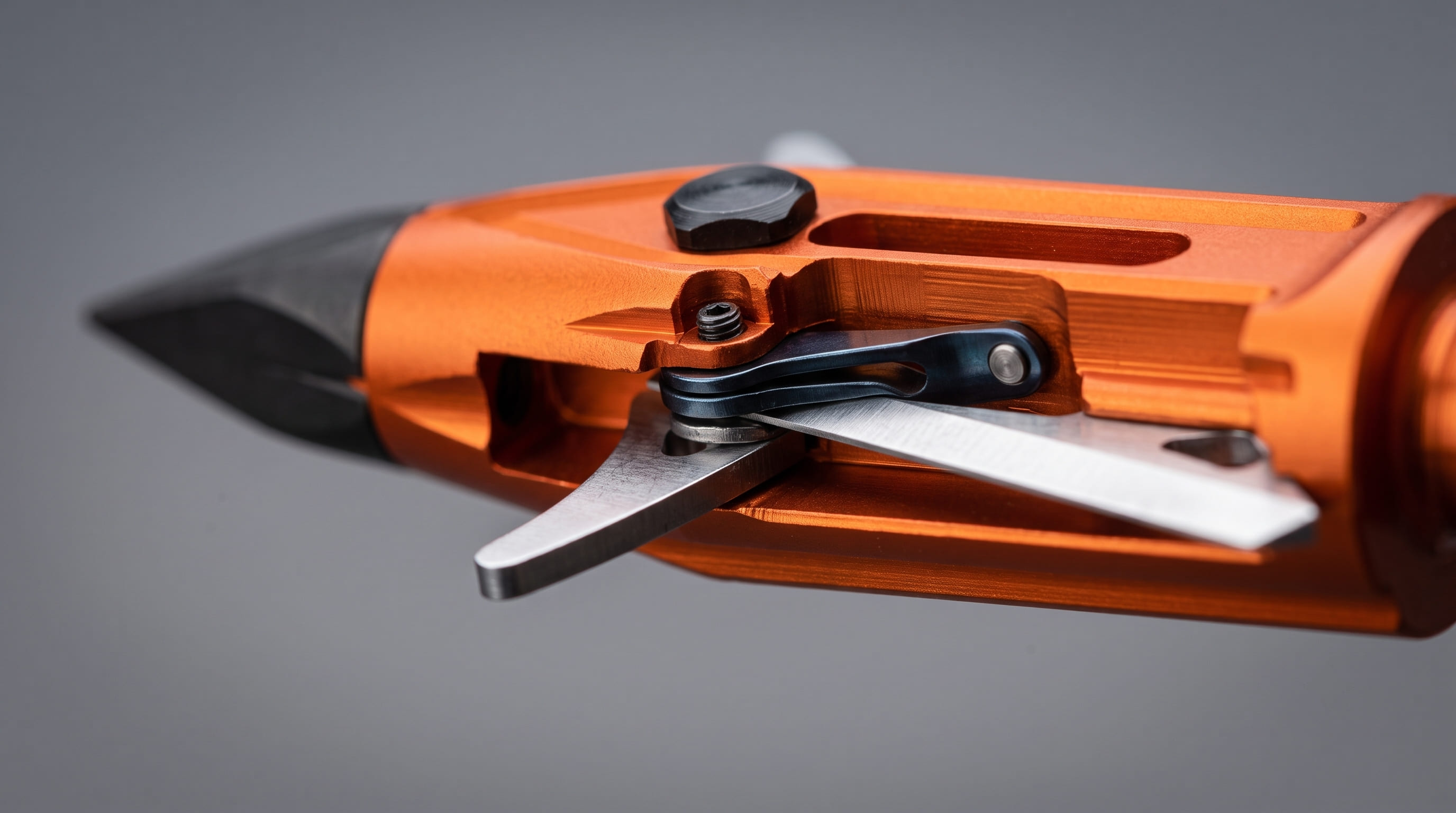

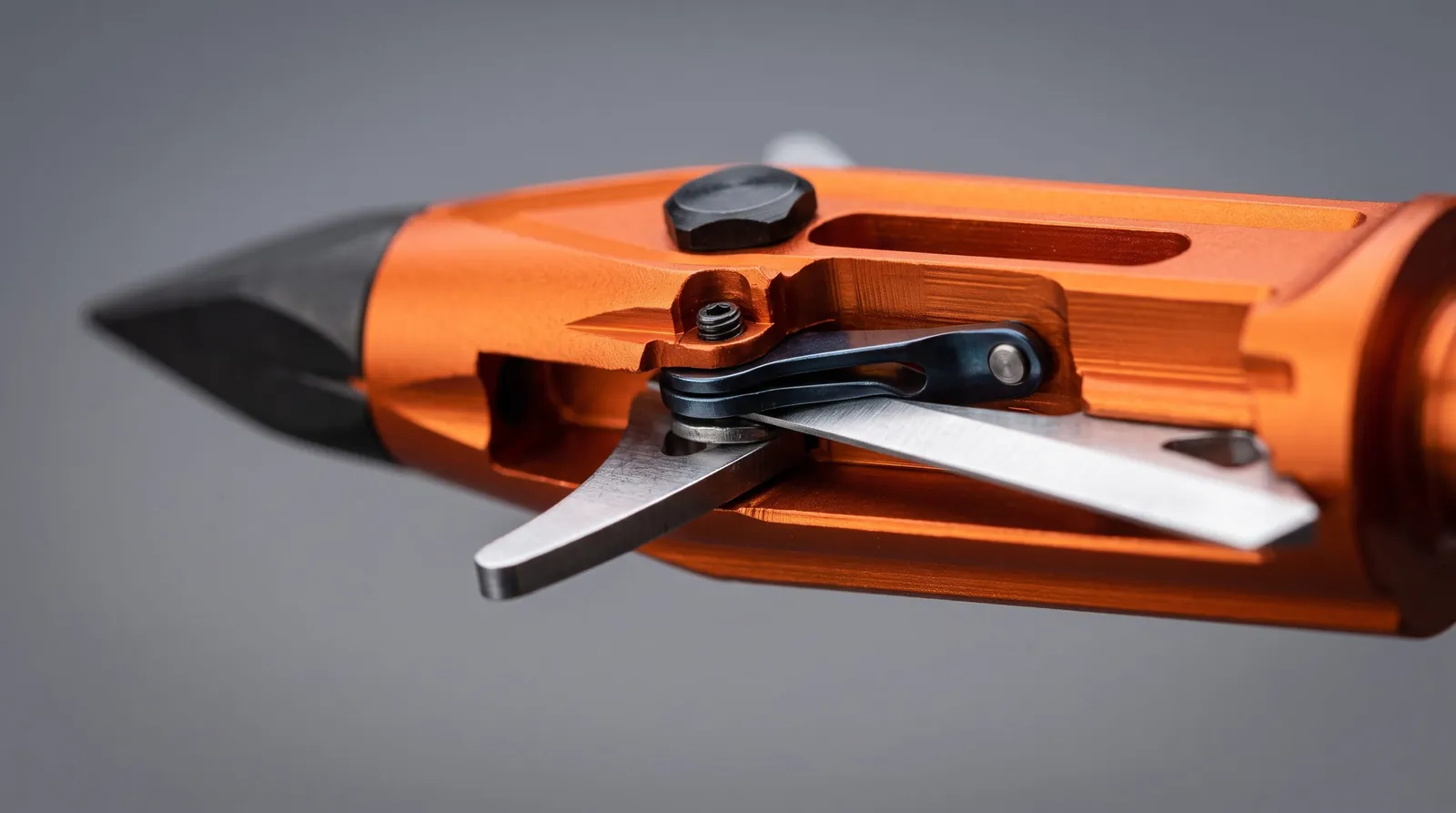

Spring Clip Blade-Lock System
The internal spring clip held blades securely folded throughout our flight testing at various angles, with no instances of premature deployment. This eliminates a maintenance point compared to O-ring or band-based competitors, since there's no separate rubber component to inspect or replace over time.
Rear-Deployment Reliability
Our testing into target media confirmed the rear-deploying blades opened reliably and consistently after impact, delivering the full 2-inch cutting diameter without inconsistent partial deployment.
Durability at Speed
The 7075-T6 aluminum body and hardened 12L14 steel tip held up well across our repeated high-speed impact testing, though we did note more cosmetic surface wear on the aluminum body than we've seen on steel-bodied broadheads — a reasonable tradeoff for the lighter weight and high-speed rating. The lighter aluminum construction also helped the broadhead retain more of its original velocity in flight compared to heavier steel-bodied alternatives at matched grain weights, a subtle but real factor in maintaining kinetic energy downrange.
Ravin R102 vs. Alternatives
| Feature | Ravin R102 | TenPoint Nemesis | Fixed-Blade Broadhead |
|---|---|---|---|
| Price (3-pack) | $45–$55 | $49–$79 | $30–$50 |
| Cutting Diameter | 2 in | 3.75 in (staged) | Typically 1-1.5 in |
| Speed Rating | Up to 450 FPS | Not specifically speed-rated | Generally unrestricted |
| Lock System | Internal spring clip | O-Ring/Band | N/A, always open |
| Best For | High-speed crossbow platforms | Maximum staged wound channel | Simplicity and reliability |
vs. TenPoint Nemesis: The Nemesis offers a larger total cutting diameter through staged deployment, while the R102 is engineered and rated specifically for high-speed platforms up to 450 FPS. Ravin owners and other high-speed shooters get more assurance of speed-rated durability with the R102.
vs. Fixed-Blade Broadhead: Fixed blades remain the simplest, most failure-resistant option, but the R102 delivers a meaningfully larger cutting diameter with a spring-clip system our testing found genuinely reliable at high speed.
Our testing suggests the R102 occupies a clear niche: hunters shooting extremely fast crossbows who've had reliability concerns with mechanical broadheads not explicitly rated for their platform's speed. For that specific buyer, the R102's speed rating and simplified spring-clip maintenance genuinely address a real gap that generic mechanical broadheads don't always cover with the same confidence.
Who Should Buy the Ravin R102 Broadhead?
Buy it if you are:
- A Ravin crossbow owner or shooter of another high-speed platform wanting a broadhead specifically rated and tested for extreme velocities
- Someone who wants a mechanical broadhead without separate O-rings or lock rings to maintain
- A hunter comfortable with mechanical broadhead care and pre-hunt inspection
Look elsewhere if you are:
- Wanting the largest possible cutting diameter, better found on staged-deployment designs like the TenPoint Nemesis
- Shooting well above 450 FPS and needing to confirm a higher-rated alternative
- Preferring the absolute simplicity of a fixed-blade broadhead with no moving parts
Setup and Care
Speed compatibility check: Confirm your crossbow's actual chronographed speed falls at or below the 450 FPS rating before using this broadhead.
Pre-hunt inspection: Check the internal spring clip mechanism before each hunt to confirm blades are properly seated and will deploy reliably on impact.
Practice shots: Take a few practice shots with the actual broadhead before hunting season to confirm point of impact matches your field points at your specific speed.
Post-hunt inspection: Inspect the aluminum body and steel tip for bending or damage after recovery, replacing any broadhead showing structural wear.
Speed verification: If you're unsure of your crossbow's actual speed, have it chronographed before committing to this broadhead for a hunt, since the 450 FPS rating is a hard ceiling rather than an approximate guideline.
Looking for other broadhead options or crossbow accessories? Our crossbow accessories category hub lets you browse the full lineup, including our TenPoint Nemesis review for a larger-cut comparison.
Frequently Asked Questions
Is the Ravin R102 Broadhead worth it at $45–$55?
For Ravin owners or other high-speed crossbow shooters wanting a broadhead specifically rated for extreme velocities, yes — our testing confirmed flight accuracy held consistent with field points at speeds approaching the 450 FPS ceiling. Hunters wanting the largest possible cutting diameter should consider the TenPoint Nemesis instead.
What crossbow speeds is the R102 compatible with?
It's rated for crossbows shooting up to 450 FPS. Confirm your crossbow's actual chronographed speed before use, especially on extremely high-speed platforms.
How does the spring clip lock system work?
An internal spring clip holds the rear blades folded during flight and releases them on impact, eliminating the need for separate rubber O-rings or lock bands that other mechanical broadheads use.
Is the R102 exclusive to Ravin crossbows?
While branded and speed-rated for Ravin platforms, it uses standard broadhead threading and can be used on other compatible crossbows shooting within its rated speed range, giving non-Ravin owners with fast platforms a viable option as well.
How does the R102 compare to the TenPoint Nemesis?
The Nemesis offers a larger 3.75-inch total cut through staged deployment, while the R102 focuses on a proven 2-inch cut specifically engineered and rated for high-speed platforms up to 450 FPS.
Final Score
| Category | Score |
|---|---|
| High-Speed Flight Accuracy | 9.0 / 10 |
| Deployment Reliability | 8.8 / 10 |
| Build Quality | 8.4 / 10 |
| Ease of Maintenance | 8.9 / 10 |
| Value for Money | 8.2 / 10 |
| Speed Rating Confidence | 9.1 / 10 |
| Overall | 4.4 / 5 |
The Ravin R102 delivers genuinely reliable performance specifically engineered for high-speed crossbow platforms, with a spring-clip design that simplifies maintenance compared to O-ring-based mechanical broadheads — our testing confirmed flight accuracy held consistent at speeds approaching its rated 450 FPS ceiling. Browse our crossbow accessories category hub to compare more options.
The tradeoff is a more modest 2-inch cutting diameter compared to staged-deployment competitors — a reasonable cost for shooters who specifically want a broadhead proven and rated for extreme crossbow speeds.
Rating: 4.4/5 — Best High-Speed Crossbow Broadhead of 2026, backed by two weeks of dedicated high-speed flight and durability testing
Best for: Ravin owners and other high-speed crossbow shooters up to 450 FPS
Skip if: You want the largest possible cutting diameter or shoot well above 450 FPS
