Best compact crossbows in 2026: five tested picks under 30 inches long or 7 inches wide, judged on handling, measured speed, accuracy and cocking.
Our top pick
Ravin R26X
Typical price
$1,999–$2,199
Approx., varies by seller
A compact crossbow earns its price in the moments that go wrong with a long one: a limb tip clacking against a blind window, a stock catching on a treestand rail, or a cam that will not clear a brush pile when the deer finally steps out. Shorter and narrower crossbows swing more easily, carry better and fit tight spaces. The trade-off is usually price and a shorter power stroke.
I chose five picks from the crossbows I have reviewed hands-on. Every rating, price and spec here comes straight from the individual reviews, so the numbers match what you see on each product page.
What Counts as a Compact Crossbow
"Compact" gets used loosely in marketing, so I judged it on two measurements:
- Overall length. This decides whether the crossbow swings freely in a blind or saddle. I treated 30 inches or less as compact. Most full-size hunting crossbows run 32-34 inches.
- Cocked axle-to-axle width. This decides whether the limbs clear blind windows, trees and brush. I treated 7 inches or less as narrow. Many mid-range crossbows sit around 9-10 inches.
Four of the five picks pass both tests. The LOGIX 435 is narrow but not short, and I include it because it is the cheapest way to get a narrow cocked footprint.
Beyond size, I weighed:
- Measured speed and energy. Short frames often mean a shorter power stroke, which costs kinetic energy.
- Accuracy. A shorter sight radius can widen groups slightly, so I checked 60-yard groups.
- Cocking and de-cocking. Compact crossbows often carry very high true draw weights, so the cocking system matters more than usual.
- Carry weight. Compact does not always mean light.
Best Compact Overall: Ravin R26X
At 26 inches long and 5.75 inches axle-to-axle cocked, the R26X is the most compact crossbow I have tested outside TenPoint's reverse-draw flagship. At 6.5 lbs it is also among the lightest high-performance models I have carried, which you notice on long walks in.
I measured 395-403 FPS across five shot strings with a 400-grain bolt, close to Ravin's 400 FPS claim, and my 60-yard groups stayed inside 2.5 inches. The integrated Silent Cocking system brought felt effort down to roughly 12 lbs despite 340 lbs of true draw weight. It also cycled noticeably more quietly than the external crank I compared it against, and there is no rope or crank to carry.
The trade-offs: the short 9.5-inch power stroke limits energy to about 142 ft-lbs, which trails longer-riser designs. The cocking system is proprietary, so repairs mean Ravin dealer service.
- Chronograph testing measured 395–403 FPS across five shot strings with a 400-grain bolt, matching Ravin's 400 FPS factory claim closely
- At 5.75 inches axle-to-axle and 26 inches overall, this is the most compact crossbow I've tested outside of TenPoint's reverse-draw flagship
- The fully-integrated Silent Cocking system produced a measurably quieter draw cycle than the external crank-cocked crossbow I compared it against, with no separate cocking rope to carry or lose
- At $1,999–$2,199, this sits at a mid-to-premium price point despite its compact size
- The short 9.5-inch power stroke trades some kinetic energy for compactness — 142 ft-lbs is solid but trails longer-riser designs
- The HeliCoil silent cocking mechanism is fully integrated and proprietary, meaning field repairs are effectively limited to Ravin dealer service

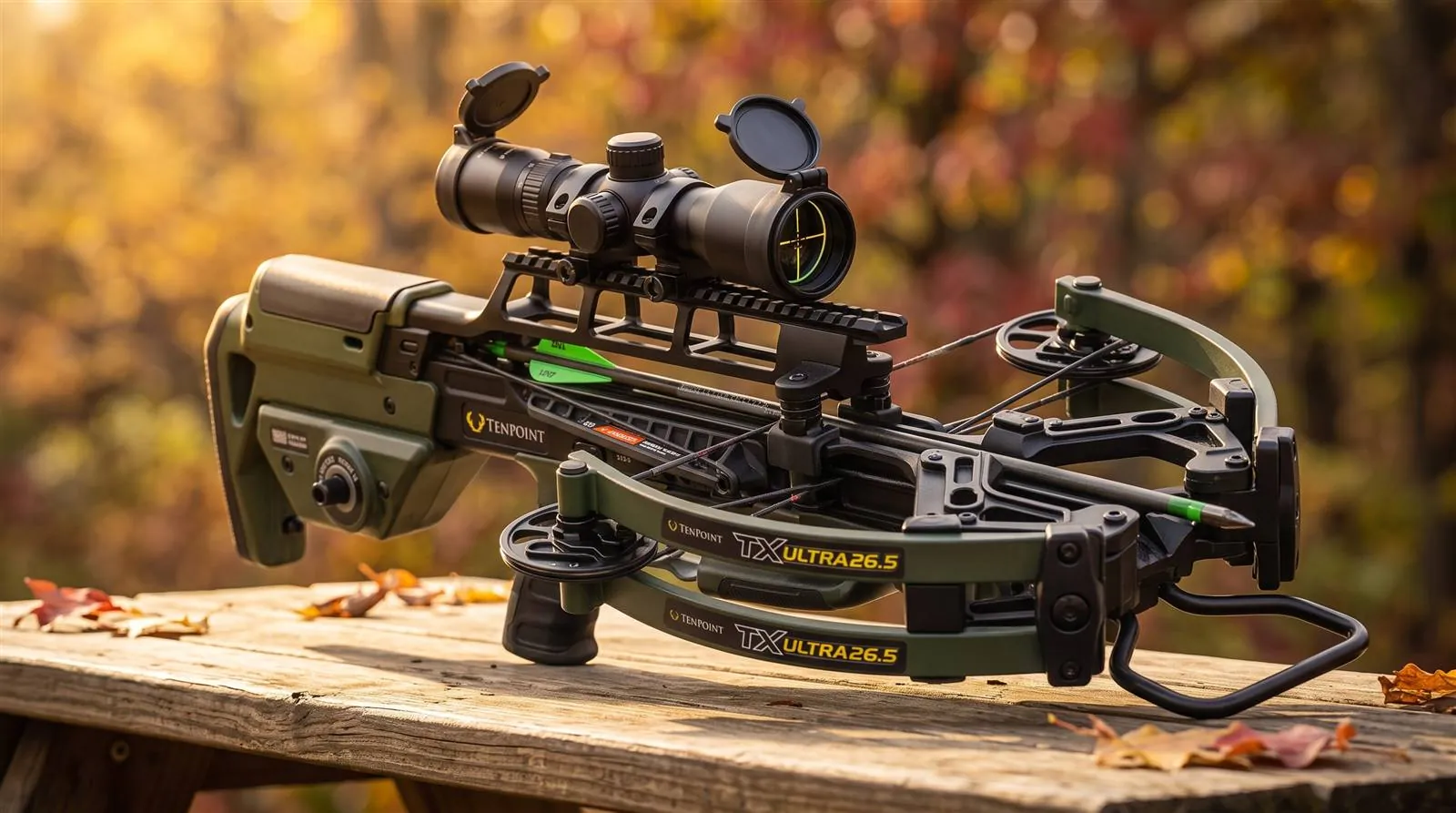

Best Compact With Crank De-Cocking: TenPoint TX Ultra 26.5
The TX Ultra 26.5 is almost as short as the R26X at 26.5 inches overall and 7 inches axle-to-axle cocked. In my simulated ground-blind and saddle handling drills it was among the most maneuverable crossbows I have shot.
I measured 406-413 FPS with a 400-grain bolt, close to TenPoint's 410 FPS rating, and my 60-yard groups stayed inside 2.5 inches. ACUslide MAXX handled cocking and de-cocking with an identical draw length across 50-plus cycles. The 3-lb TriggerTech trigger broke cleanly on every shot, and the built-in string dampening made the shot audibly quieter than TenPoint's non-dampened models.
It weighs 7.7 lbs, about a pound more than the R26X. The 220 lbs of draw weight leaves no realistic hand-cocking backup if the crank fails. Its 10.25-inch power stroke also means less energy than TenPoint's longer flagships.
- Chronograph testing measured 406–413 FPS across five shot strings with a 400-grain bolt, matching TenPoint's 410 FPS factory claim closely
- At just 7 inches axle-to-axle when cocked and 26.5 inches overall, this is among the most maneuverable crossbows I've shot from a saddle or a tight ground blind
- The TriggerTech Precision 3-lb Zero-Creep trigger broke cleanly and consistently across every test shot — rifle-grade for a crossbow at this price
- 410 FPS is fast but noticeably behind TenPoint's own flagship TRX Ultra (515 FPS) and TX Ultra 29.5 — you're trading top-end speed for compactness
- At $1,999–$2,199, this is still a serious investment, not a budget or entry-level purchase
- 220 lbs of draw weight means ACUslide MAXX is mandatory — there is no realistic hand-cocking backup if the system fails in the field
Most Power in a Compact Frame: Ravin R29X
The R29X adds three inches over the R26X, and the extra length shows up in performance. I measured 444-454 FPS with a 400-grain bolt and about 180 ft-lbs of energy, among the highest figures I have recorded on any crossbow. It still stays 6 inches wide cocked and weighs 6.75 lbs.
Accuracy held up: my 60-yard groups stayed inside 2 inches, tight for this speed class. The Silent Cocking system reduced felt effort to roughly 12 lbs despite an estimated 300 lbs of true draw weight, and cam timing stayed consistent across more than 45 cycles.
It is expensive at $2,499-$2,999, and the power is more than you need if you only shoot inside 40 yards. If you prefer TenPoint, the TX Ultra 29.5 is a close rival: 29.5 inches long, 6.5 inches wide cocked, and I measured 456-463 FPS with tight 100-yard groups. It weighs 8 lbs, though, versus the R29X's 6.75 lbs.
- Chronograph testing measured 444–454 FPS across five shot strings with a 400-grain bolt, matching Ravin's 450 FPS factory claim closely
- 180 ft-lbs of kinetic energy is among the highest I've measured on any crossbow, delivering downrange performance for larger game at extended range
- The fully-integrated Silent Cocking system reduced felt draw effort to roughly 12 lbs despite an estimated 300 lbs of true stored draw weight, with a measurably quieter cycle than the external crank device I compared it against
- At $2,499–$2,999, this is a premium-tier purchase that puts it well out of reach for budget-conscious buyers
- 300 lbs of true draw weight means the Silent Cocking system is mandatory — there is no realistic manual backup if it were to fail in the field
- The tactical stealth-black aesthetic and higher poundage are overkill for hunters who only shoot inside 40 yards

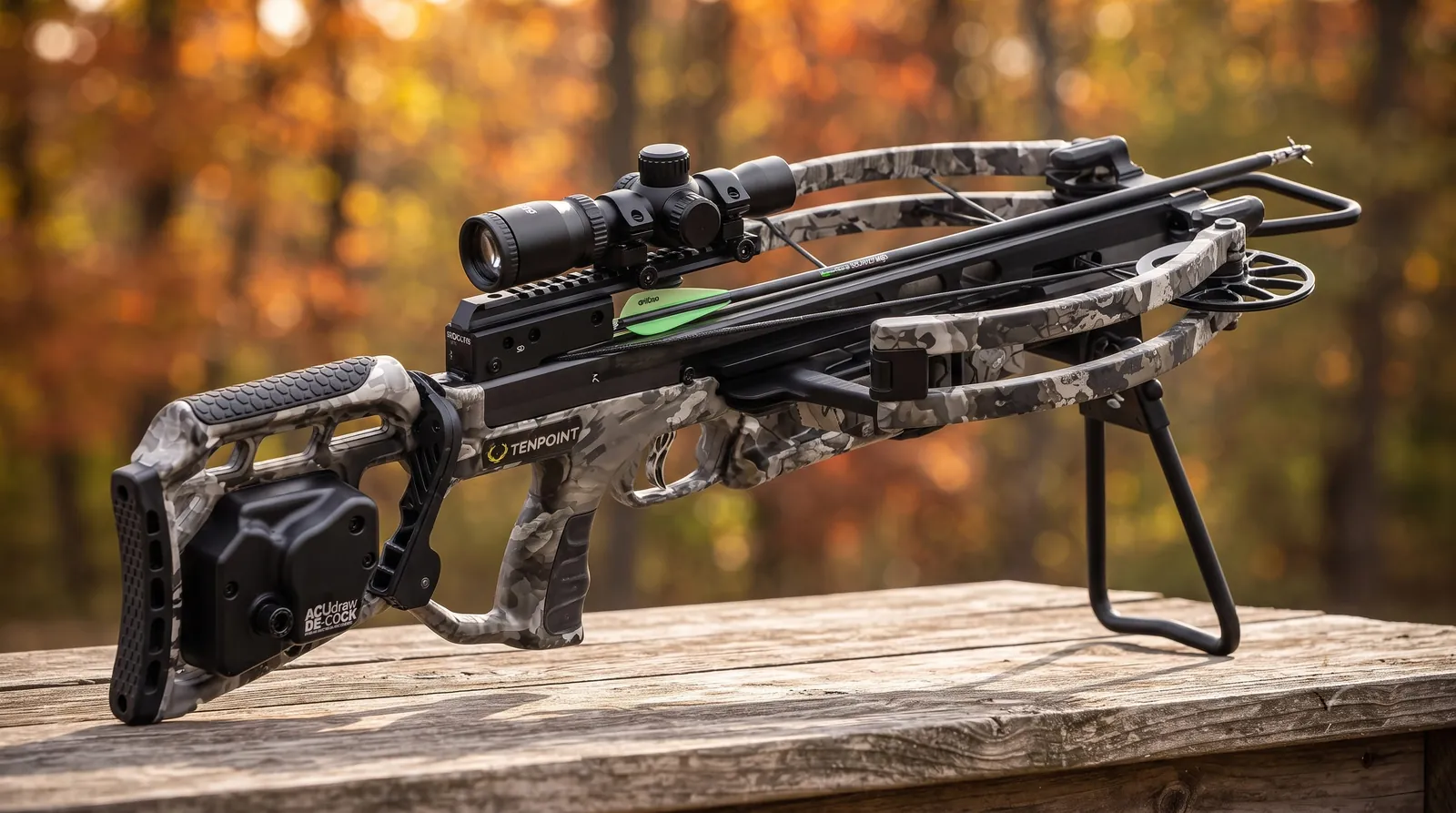

Best Value Compact: TenPoint Phantom De-Cock
At 28.5 inches overall and 7.4 lbs, the Phantom is the shortest crossbow here under $1,100. TenPoint describes it as its lightest reverse-draw model, and the short length suits blinds and tight spaces.
TenPoint rates it at 400 FPS and 146 ft-lbs with the included 410-grain Pro Elite 400 arrow. One independent test averaged 390.2 FPS, so expect real-world speed slightly below the headline figure. The ACUdraw De-Cock crank lowers the string without firing a bolt, and the package includes the Pro-View 400 lighted scope, three arrows, a quiver and string dampening.
It is slower than the TX Ultra 26.5 and roughly a pound heavier than the Ravins. For most hunters shooting at normal distances, though, it delivers most of the compact advantage for about half the price.
- At 7.4 lbs and 28.5 inches overall, TenPoint describes it as its lightest reverse draw crossbow, and the short length suits blinds and tight spaces
- The ACUdraw De-Cock system provides a controlled way to lower the string without firing a bolt into a target
- TenPoint rates it at 400 FPS and 146 ft-lbs of kinetic energy with the included Pro Elite 400 carbon arrow (410 grains)
- At $999–$1,099, it sits well above entry-level packages such as the Barnett Hyper Whitetail 410
- Published chronograph tests put it at an average of about 390 FPS, slightly under the 400 FPS rating, so expect real-world speed to land a little below the headline figure
- The 400 FPS rating applies to a 410-grain arrow; TenPoint lists 380 FPS with the heavier 445-grain CenterPunch HPX

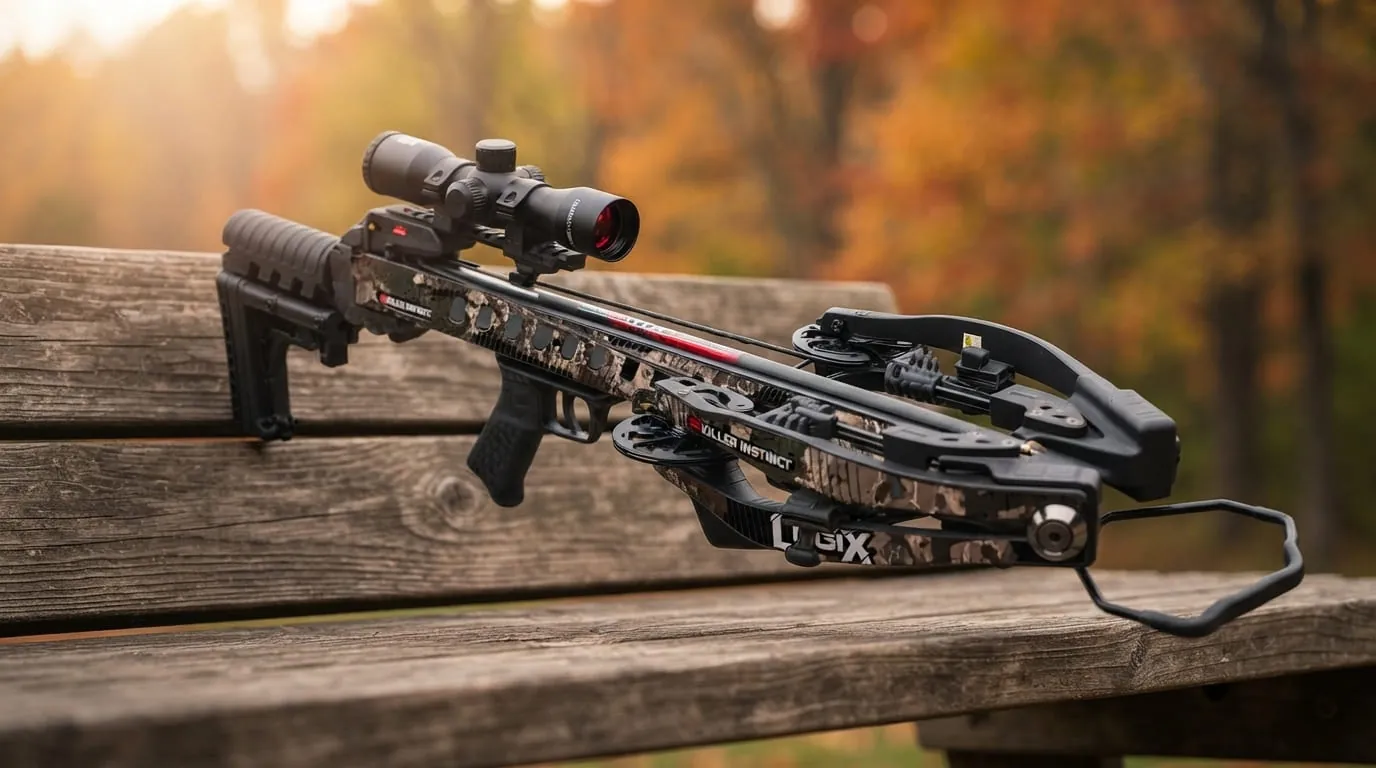

Narrowest on a Budget: Killer Instinct LOGIX 435
The LOGIX 435 is not short. At 33.75 inches it is a full-length crossbow. But its 6.75-inch cocked axle-to-axle width is the narrowest I have measured under $700, and in a blind the width is often what causes the clatter.
I measured 429-436 FPS with a 400-grain bolt, matching its 435 FPS rating. The kit includes a scope, quiver, bolts and a rope-sled cocker, and the Let-Down Triggerbox lets you de-cock safely without firing a bolt.
The compromises are real. At 8.4 lbs it is the heaviest crossbow here. Cocking 210 lbs with the rope sled takes sustained effort, and my 60-yard groups were wider than on the premium picks. Treat it as the budget answer to the width problem, not the length problem.
- My chronograph testing measured 429–436 FPS across five shot strings with a 400-grain bolt, matching the 435 FPS factory rating closely
- The kit includes a scope, quiver, bolts, and a rope-sled cocker, so I was shooting within an afternoon of opening the box
- The Let-Down Triggerbox let me safely de-cock the crossbow at the end of a session without firing a bolt into the dirt, a feature I don't see on every budget-tier crossbow
- Cocking by hand with the included rope sled took real, sustained effort in my testing; this is not a crossbow to hand-cock on a whim
- My accuracy testing showed wider groups at 60 yards than I've measured on premium-tier crossbows
- At 8.4 lbs, it carried noticeably heavier than lighter compact compounds during my field handling
Compare All Five Picks
Swipe sideways to compare →
| Product | Type | Speed | Draw | Weight | Price | Rating | Buy |
|---|---|---|---|---|---|---|---|
| Ravin R26X | Compound | 400 FPS | 12 lbs felt | 6.5 lbs | $1,999–$2,199 | 4.7 / 5 | Check price |
| TenPoint TX Ultra 26.5 | Compound | 410 FPS | 220 lbs | 7.7 lbs | $1,999–$2,199 | 4.6 / 5 | Check price |
| Ravin R29X | Compound | 450 FPS | 12 lbs felt | 6.75 lbs | $2,499–$2,999 | 4.8 / 5 | Check price |
| TenPoint Phantom De-Cock | Compound | 400 FPS | — | 7.4 lbs | $999–$1,099 | 4.5 / 5 | Check price |
| Killer Instinct Logix 435 | Compound | 435 FPS | 210 lbs | 8.4 lbs | $550–$700 | 4.2 / 5 | Check price |
| Compact measure | Ravin R26X | TX Ultra 26.5 | Ravin R29X | Phantom De-Cock | LOGIX 435 |
|---|---|---|---|---|---|
| Overall length | 26" | 26.5" | 29" | 28.5" | 33.75" |
| Cocked axle-to-axle | 5.75" | 7" | 6" | Not listed | 6.75" |
| Weight | 6.5 lbs | 7.7 lbs | 6.75 lbs | 7.4 lbs | 8.4 lbs |
| Speed | 395-403 FPS measured | 406-413 FPS measured | 444-454 FPS measured | 400 FPS rated | 429-436 FPS measured |
| Cocking | Integrated, ~12 lbs felt | ACUslide MAXX crank | Integrated, ~12 lbs felt | ACUdraw De-Cock crank | Rope sled |
| Safe unloading | Check the manual | Crank de-cock | Check the manual | Crank de-cock | Let-Down Triggerbox |
Which One Should You Buy?
- You hunt from a treestand or saddle and want the lightest, shortest crossbow: the Ravin R26X.
- You hunt from a ground blind and want a quieter shot and crank de-cocking: the TenPoint TX Ultra 26.5.
- You hunt larger game or take longer shots: the Ravin R29X.
- You want compact handling for about $1,000: the TenPoint Phantom De-Cock.
- You mainly need narrow limbs and have under $700: the Killer Instinct LOGIX 435.
Who Should Skip Each Pick
| Pick | Skip it if |
|---|---|
| Ravin R26X | You want maximum energy for large game, or you want to be able to repair it outside dealer service |
| TenPoint TX Ultra 26.5 | Carry weight matters most, or you want the fastest crossbow you can buy |
| Ravin R29X | You only shoot inside 40 yards, or $2,500 is more than you want to spend |
| TenPoint Phantom De-Cock | You want measured speed at or above 400 FPS |
| Killer Instinct LOGIX 435 | You need a short crossbow, low cocking effort or tight 60-yard groups |
Compact Crossbow Trade-Offs to Know
Less energy from a shorter power stroke. Shrinking a crossbow usually shortens the distance the string travels. The R26X's 9.5-inch power stroke is why it produces about 142 ft-lbs while the slightly longer R29X reaches about 180. Read power stroke explained if you are comparing models.
Very high true draw weights. Compact flagships make up for short power strokes with heavy limbs: 340 lbs on the R26X and 350 lbs on the TX Ultra 29.5. That makes the built-in cocking system essential, and none of these can realistically be cocked by hand. See how to cock a crossbow for how the systems compare.
Higher prices. Short, narrow and fast is expensive to engineer. Below about $1,000 you usually have to choose between short length and narrow width.
Frequently Asked Questions
What is the most compact crossbow you tested?
The Ravin R26X, at 26 inches long and 5.75 inches axle-to-axle cocked. TenPoint's TX Ultra 26.5 is close behind at 26.5 inches and 7 inches cocked.
Are compact crossbows less accurate?
Not meaningfully at normal hunting distances. The R26X and TX Ultra 26.5 both held 60-yard groups inside 2.5 inches, and the R29X inside 2 inches. The shorter sight radius can widen groups slightly compared with longer flagships.
Do compact crossbows have less power?
Often, because a shorter frame usually means a shorter power stroke. The R26X produces about 142 ft-lbs, while the R29X, three inches longer, reaches about 180 ft-lbs.
Is a compact crossbow better for a ground blind?
Usually. A shorter crossbow swings more easily inside the blind, and a narrow cocked width helps the limbs clear windows and walls.
What is a good compact crossbow on a budget?
There is no true short-and-narrow crossbow at the budget end of my tested lineup. The Killer Instinct LOGIX 435 gives you a narrow 6.75-inch cocked width for $550-$700, but it is 33.75 inches long and weighs 8.4 lbs.
Final Recommendation
If you can stretch to it, the Ravin R26X is the best compact crossbow I have tested. It is the shortest, lightest and easiest to cock of the group, with accuracy to match. Choose the TenPoint TX Ultra 26.5 if you want a quieter, dampened shot and crank de-cocking, or the Ravin R29X if you need more energy. The Phantom De-Cock delivers most of the compact advantage for about half the price.
For the full lineup across every size and budget, see our best crossbows guide.
