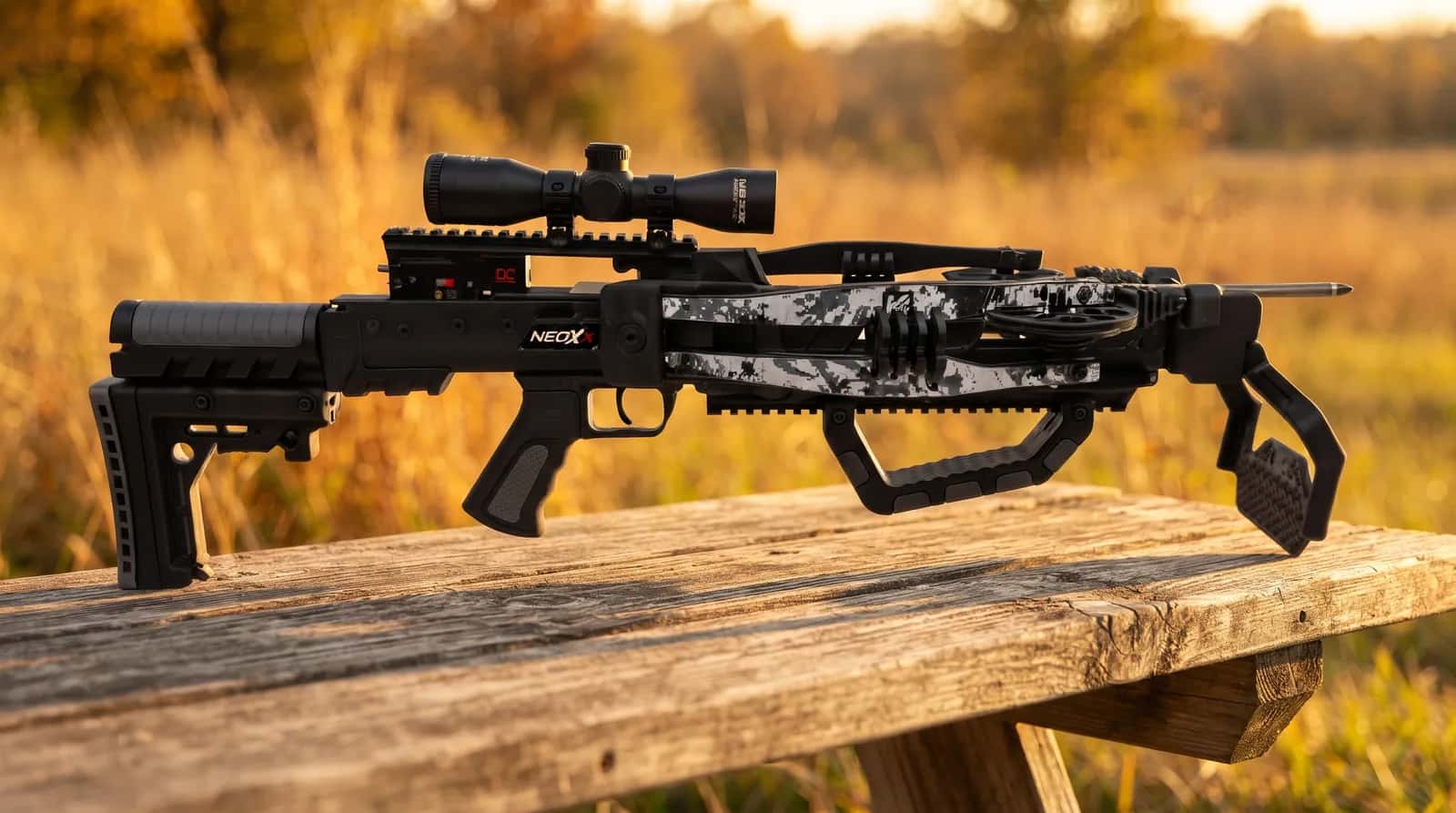

Killer Instinct NEO-X Review 2026

The Killer Instinct NEO-X packs a 415 FPS rating into a crossbow only 28 inches long and 6.75 inches wide when cocked, and it lets you de-cock by hand without firing a bolt. I score it 4.1 out of 5. It is compact and well equipped for $649–$699, but it weighs 8.2 lbs and ships with only a rope cocker for a 195 lb draw.

The Killer Instinct NEO-X crossbow (sold by retailers as the Neo-X DC crossbow or Neo-XDC 415) is a reverse-limb compound crossbow package aimed at hunters who sit in ground blinds and tight tree stands. This review is built from Killer Instinct's published specifications and from the package listings of major retailers. I have not chronographed this model, so every speed and energy figure below is a listed rating, and the scores reflect the specifications rather than my own range results.

Below are the price, specs, the DC Triggerbox, cocking effort, handling, what is in the box and how it compares with the Killer Instinct Logix 435, the brand's other mid-priced package. If you are new to crossbows, start with best crossbows for beginners.

Killer Instinct NEO-X Specifications

These are the Killer Instinct NEO-X specs as listed, including the cocked width.

These are Killer Instinct and retailer specifications for the NEO-X package. The retailer listings agree on the core numbers.

What I Like

The NEO-X gets a lot right for a hunter who shoots from cover. These are the strengths the specifications support.

• Compact without giving up speed. A 415 FPS rating from a 28-inch frame is the headline. Many crossbows at this speed run 33 inches or longer.
• Hand de-cocking with no extra hardware. The DC Triggerbox lets you lower the string by hand without firing a bolt or buying a crank. That makes it a de-cocking crossbow at a price where most rivals need a crank to do the same job.
• A very narrow cocked width. At 6.75 inches axle-to-axle when cocked, it matches the Logix 435 and is narrower than every other rival in the comparison table below.
• Published trigger and let-off figures. Killer Instinct lists a 3.5 lb trigger and 56% let-off, which is more than it publishes for the Logix 435.
• A package you can hunt with. The scope, bolts, cocker, quiver and lube are in the box, and the Amazon bundle adds a case and broadheads.

Potential Drawbacks

The NEO-X makes three trade-offs you should weigh before buying, and the first is the one most buyers notice.

• Heavy for its size. At 8.2 lbs, it weighs more than the 7.1 lb Wicked Ridge Invader M1 De-Cock and the 7.6 lb Barnett Hyper Whitetail 410. The short frame concentrates that weight near your hands.
• Rope cocking only. A 195 lb draw with 56% let-off is manageable with the sled, but there is no crank in the box. Read crossbow draw weight by body size if cocking effort is a concern.
• Thin bolt count and an unclear warranty. Two bolts against a three-arrow quiver means you will want spares, and the warranty terms were not on the retailer pages I checked.

Key Features Explained

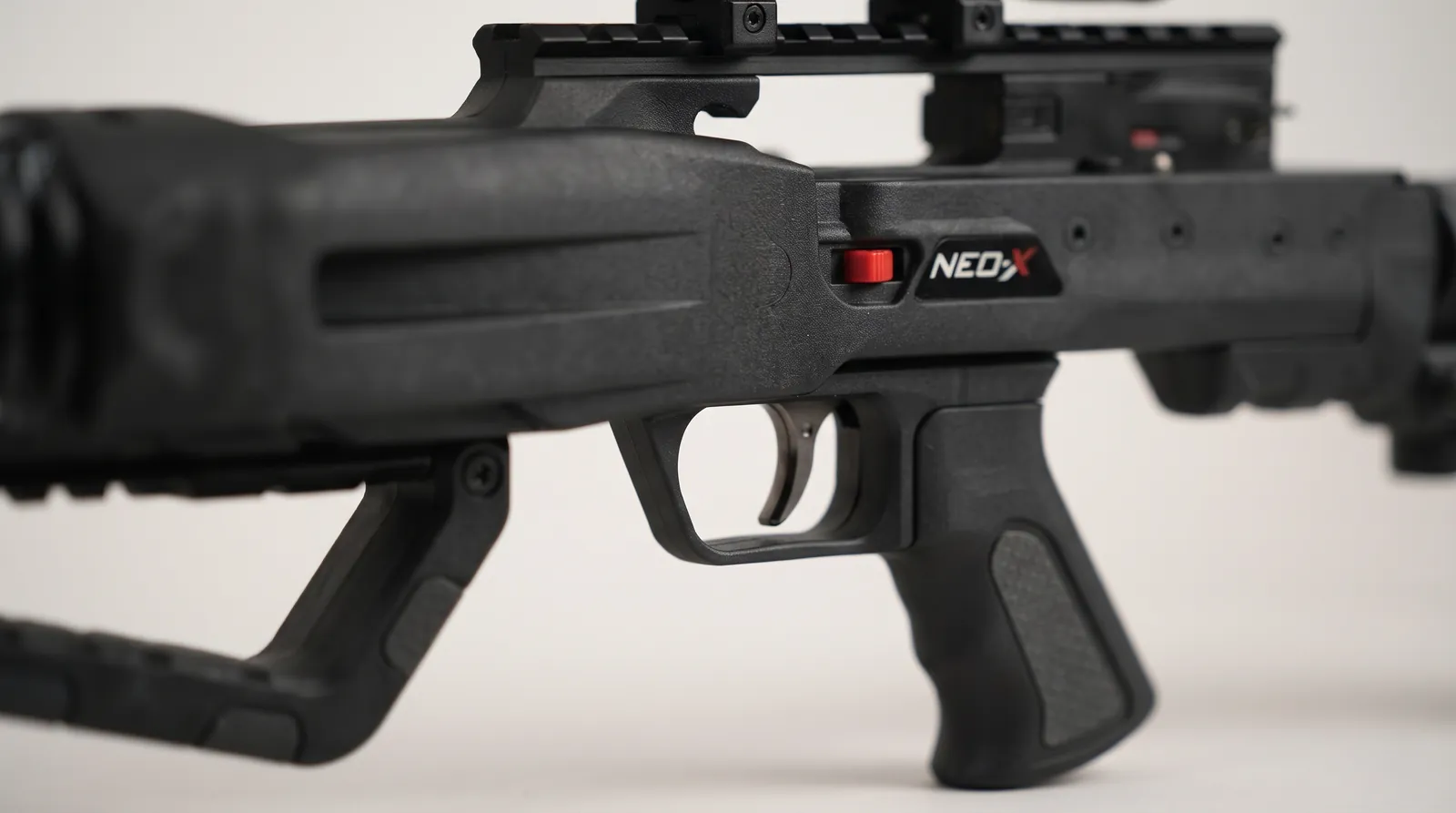

What does the DC Triggerbox do?

The DC Triggerbox is Killer Instinct's patent-pending trigger assembly that lets you de-cock the crossbow by hand without firing. Most crossbows at this price can only be unloaded by shooting a bolt into a target, which wears the string and costs you a bolt. Follow the Killer Instinct manual for the exact steps, and read how to de-cock a crossbow safely for the general routine.

Is hand de-cocking the same as a de-cock crank?

No. A crank such as TenPoint's ACUdraw De-Cock lets the string down mechanically, while the DC Triggerbox relies on you controlling the string by hand. Hand de-cocking saves the cost and weight of a crank, but it asks for a firm grip and a careful routine every time.

Why does the reverse-limb design matter?

The NEO-X is a reverse-limb crossbow: it mounts its limbs reversed, with the riser set further back, so the string travels a longer distance before release. That is how it reaches a 15-inch power stroke in a 28-inch frame. The design also moves weight and balance inward toward the shooter. It is the same idea behind reverse-draw crossbows, and it explains why such a short crossbow can carry a 415 FPS rating.

What is the X-Cam system?

The synchronized X-Cam is rated at 56% let-off. Let-off reduces the peak force near the end of the cocking stroke, so a 195 lb draw weight does not mean 195 lbs of constant pull. Killer Instinct also says the cams give a smoother, quieter shot.

What is the Lumix XLR scope like?

The included Lumix XLR is a 4x32 scope with an illuminated reticle and multiple aiming points. It is a fixed-power optic, so it is simple to use but gives you no zoom for longer shots. I have not looked through this model, so I treat it as a capable starter optic that some owners will upgrade later.

Performance & Usability

How fast is the Killer Instinct NEO-X?

Killer Instinct rates the NEO-X at 415 FPS and 141.53 ft-lbs of kinetic energy. Those two figures fit a bolt of about 370 grains at 415 FPS. The package ships with 390-grain Hypr bolts, which would carry the same energy at roughly 404 FPS. Treat 400–415 FPS as the realistic range with the included bolts, and check your own setup with the kinetic energy calculator.

Is 415 FPS enough for hunting?

For deer-sized game at normal crossbow distances, the energy figure is well above what most hunters use. Your state may set its own crossbow equipment rules, so check the crossbow hunting laws by state and confirm the current rules with your state's wildlife agency.

How accurate should it be?

I have not shot groups with this model, so the 8.0 accuracy score is provisional. The specifications point in the right direction: a 3.5 lb trigger is light for a factory crossbow, and a long power stroke at this speed gives a flatter trajectory. I will update the score if I test it.

How hard is it to cock?

With a 195 lb draw and 56% let-off, the NEO-X is easier to cock than the 210 lb Logix 435, but it still needs the included sled rope cocker every time. The new Maxpad foot stirrup gives you a stable base while cocking. Put 195 lbs into the cocking effort estimator, and read how to cock a crossbow for the sled technique.

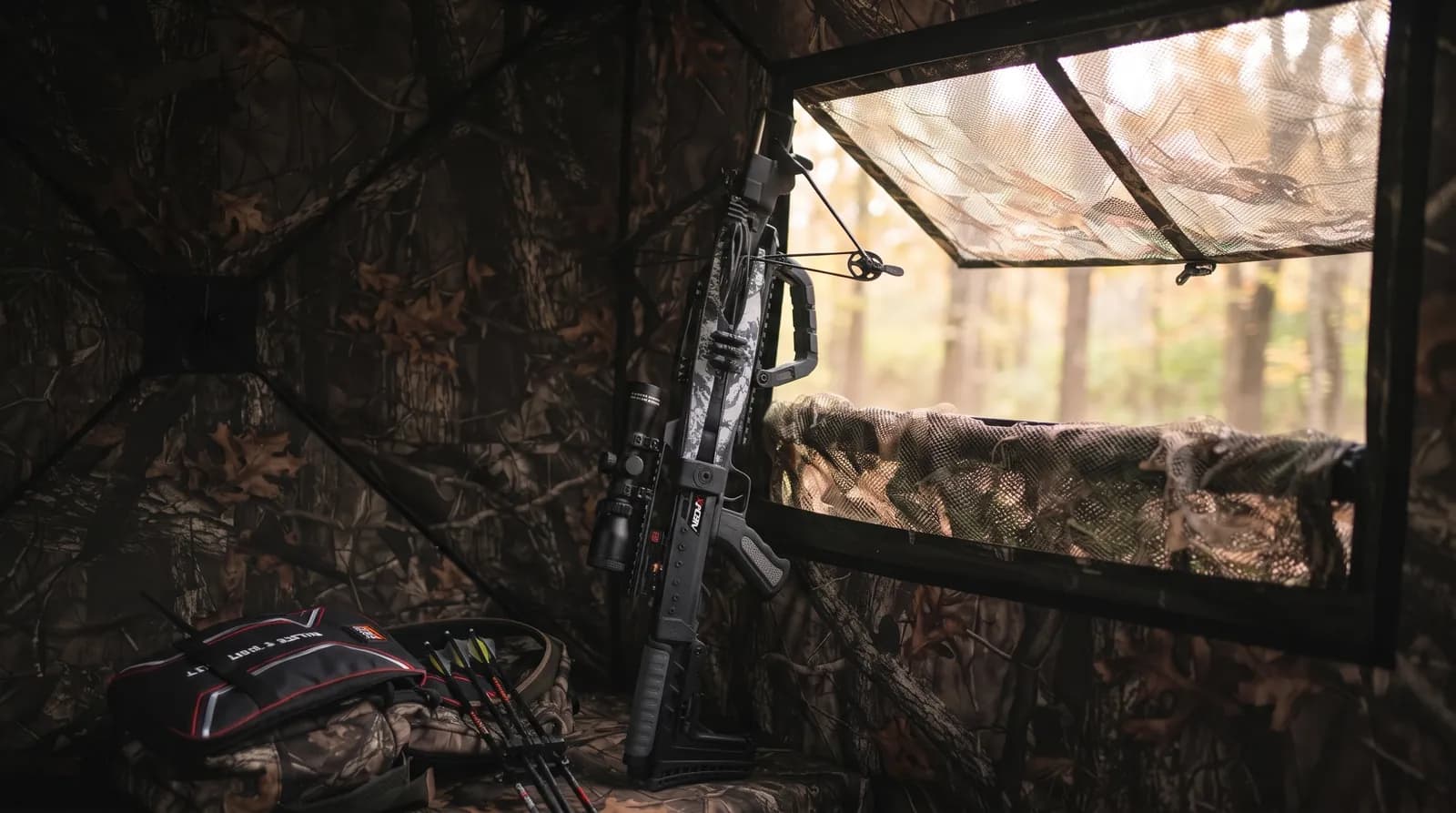

How does it handle in a blind?

Handling is where the NEO-X is strongest. A 6.75-inch cocked width and 28-inch length make it easy to swing inside a ground blind or around a tree trunk. The trade-off is that 8.2 lbs in a short frame feels dense on a long walk in, so a sling is worth having.

How loud is it?

Killer Instinct claims a quieter shot from the X-Cam system but publishes no decibel figure, and I have not measured one. Expect the noise of a 415 FPS compound and add string suppressors if your deer are wary.

Who Is the Killer Instinct NEO-X For?

The NEO-X suits hunters who shoot from cover and want a short, narrow crossbow that they can unload without firing.

Best suited to:

• Ground-blind and tree-stand hunters who value maneuverability over carry weight
• Hunters who want hand de-cocking without paying for a crank system
• Buyers who want a complete package, including a case and broadheads in the Amazon bundle

Consider something else if:

• You want an integrated crank to cock and de-cock
• You walk long distances to your stand and want the lightest crossbow
• You want measured, independently published speed and accuracy figures before you buy

Browse the compound crossbows hub for more options, or see best compact crossbows for the compact shortlist.

Killer Instinct NEO-X vs Alternatives

Figures for the rivals come from their own reviews on this site.

NEO-X vs Logix 435

The Logix 435 is rated 20 FPS faster and can cost less, but it is 33.75 inches long against 28 inches for the NEO-X, and it draws 15 lbs more. Choose the NEO-X for a shorter frame and an easier draw, and the Logix for speed and a published Limited Lifetime Warranty.

NEO-X vs Wicked Ridge Invader M1 De-Cock

The Invader M1 costs $70–$150 more and is 25 FPS slower, but its ACUdraw De-Cock crank cocks and de-cocks mechanically and it weighs 1.1 lbs less. Choose the Invader if you want the crank; choose the NEO-X for speed and width.

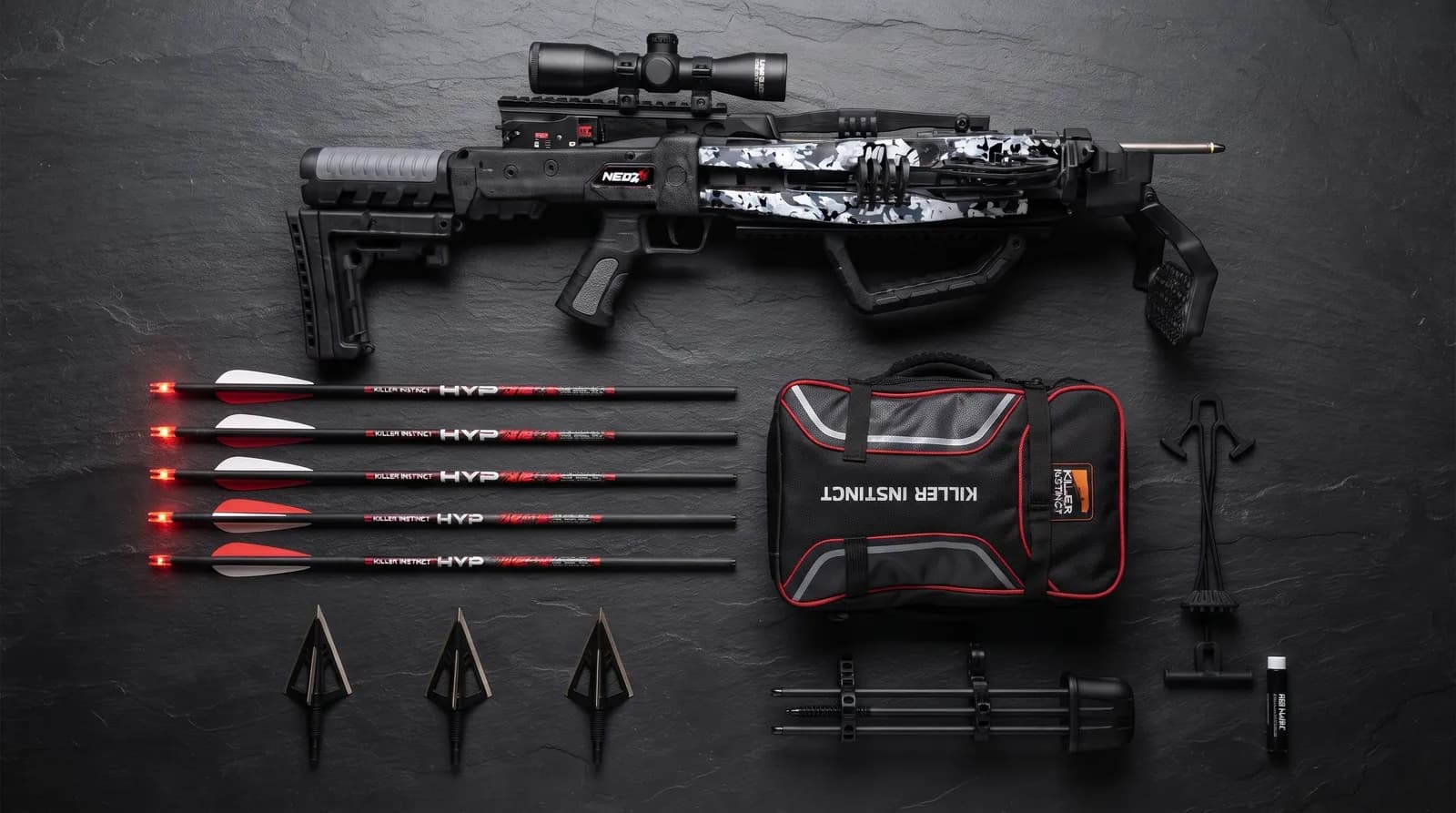

What Is in the Box and What Else You Need

Retailer listings for the standard NEO-X crossbow package agree on the contents. The Amazon listing is a bundle that adds a case and broadheads, so check that listing for the exact case and broadhead model.

Before your first session, read the manual, mount and zero the scope, and practise cocking with the sled and de-cocking with the DC Triggerbox while the crossbow is unloaded. How to sight in a crossbow scope covers the zeroing steps, and how to choose crossbow bolts explains how to match spares to the 390-grain originals.

Ownership and Care

The DC Triggerbox only helps if the rest of the crossbow is kept in good order. A few habits cover most of it:

• Lubricate the rail with the included lube as the manual directs, and inspect the string and cables for fraying before each session. How to maintain a crossbow covers the routine.
• De-cock at the end of every session and store the crossbow uncocked, ideally in the bundled case.
• Never dry-fire it, even with anti-dry-fire protection built in.
• Register the crossbow with Killer Instinct and keep your receipt, because the warranty terms were not published on the pages I checked.

Value for Money

At $649–$699, the NEO-X sits between the cheaper Barnett Hyper Whitetail 410 ($425–$485) and de-cock rivals such as the Wicked Ridge Invader M1 at $769–$799. The low-end gap to the Invader is $120 ($769 minus $649), and for that saving the NEO-X gives you 25 FPS more rated speed and a cocked width 3 inches narrower.

What you do not get is a crank or a published warranty. If you want a compact crossbow with hand de-cocking and you are comfortable with rope cocking, the value case holds up. If you would rather pay for a crank, the Invader M1 or the TenPoint Titan X De-Cock is the better place to spend.

Where the Killer Instinct NEO-X ranks

The Killer Instinct NEO-X earned a place in Best Reverse-Draw Crossbows 2026 (#4), where it is scored against every other model I tested for that use. For a direct head-to-head, see Forward-Draw vs Reverse-Draw Crossbows. It also comes up in Best Compact Crossbows 2026, Tested, How to Decock a Crossbow Safely, Best Crossbows for Deer Hunting 2026 and Best Budget Crossbow Under $1,000 2026.
