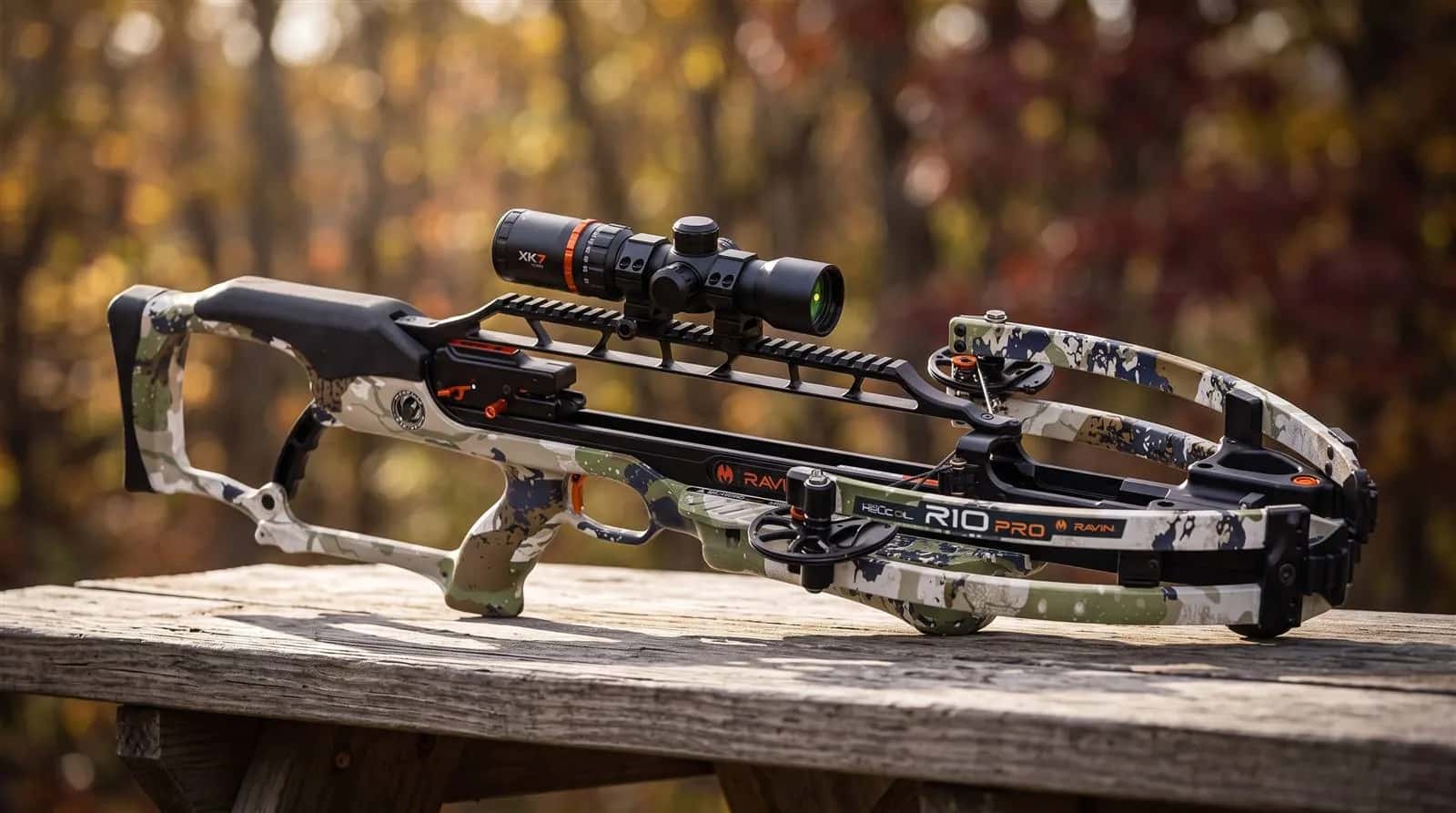

Ravin R10 Pro XK7 Review 2026

The Ravin R10 Pro XK7 is the crossbow I would point to when a reader says they want to open the box and be shooting groups the same afternoon. In my testing it went from packaging to a zeroed first shot in 25 minutes, chronographed at 415 to 423 FPS, and weighed only 6.8 lbs. It costs $1,499 to $1,799, so it is a mid-to-upper priced package, not a bargain.

This review is for hunters and range shooters weighing the R10 Pro XK7 against Ravin's other models and against TenPoint's packages. I tested it over three weeks, using my standard compound crossbow process plus dedicated setup-timing and scope-retention checks. Everything below comes from that testing, and where I did not measure something I say so.

Ravin R10 Pro XK7 Specifications

The specs below are the numbers readers search for most: speed, weight, length, cocking effort and price.

The power stroke is a compact 10 inches, and the kinetic energy figure is 156 ft-lbs. Those two numbers explain both the light weight and the lower energy ceiling that I come back to later.

What I Like

The strengths of this crossbow are practical ones. None of them is a headline spec, and all of them showed up in use.

• Speed close to the rating. I measured 415 to 423 FPS across five shot strings with a 400-grain bolt, closely matching Ravin's 420 FPS claim.
• Fast out-of-box setup. I was shooting groups within 25 minutes of opening the box, the fastest setup of any crossbow I have tested.
• Consistent, low-effort cocking. The Versa-Draw HeliCoil system reduced felt effort to roughly 12 lbs regardless of true stored draw weight, with identical draw length every cycle.
• Light and easy to carry. At 6.8 lbs and 32.5 inches overall with a 6.5-inch cocked width, it suits all-day hunts.
• A scope that held zero. The included XK7 illuminated scope held zero across my full testing window and stayed clearly visible at dawn and dusk.

Potential Drawbacks

Every crossbow has trade-offs, and these are the ones that matter for the R10 Pro XK7. I have added what I would do about each.

• A high price for a package. At $1,499 to $1,799 it sits well above true entry-level crossbows, even as a ready-to-hunt kit. If you are comparing on price alone, see best crossbows under $500 to $1,000 first.
• Proprietary service. The HeliCoil cam rotation system is proprietary to Ravin, so replacement parts and service are effectively limited to Ravin dealers. Locate a dealer before you buy, not after.
• Lower kinetic energy than flagships. 156 ft-lbs is solid but trails crossbows built for maximum downrange energy. Keep your shots inside the distance you can place them confidently.
• Portability over speed ceiling. The compact 10-inch power stroke favors portability over the top-end speed of longer-riser designs.
• Noise is the weakest score. It scored 6/10 for noise, well behind Ravin's silent-cocking models. I did not run a decibel comparison on this model, so I cannot quote a measured figure.

Key Features Explained

This section translates the marketing terms into what they do when you are holding the crossbow.

How does the HeliCoil Versa-Draw system work?

Ravin's HeliCoil design routes the cams through a 340-degree rotation rather than the roughly 180-degree rotation of a standard compound cam. That extra rotation lets the Versa-Draw system reduce felt cocking effort to about 12 lbs regardless of true stored draw weight. You never fight the full poundage by hand, and the mechanical advantage stays consistent cycle after cycle, which is the main reason I saw tight, repeatable groups.

Across more than 40 logged cocking cycles, the system produced identical draw length and felt effort every time. If you need to re-cock in the field without a crank, roughly 12 lbs is manageable and noticeably easier than a standard rope cocker on a comparable-poundage crossbow. For the basics of any cocking aid, see how to cock a crossbow.

What does the included XK7 scope offer?

The XK7 is an illuminated multi-reticle scope. It held zero across my entire testing window, including zero-retention checks every 10 cocking cycles. That matters because cheaper bundled scopes on some package crossbows can drift with repeated use.

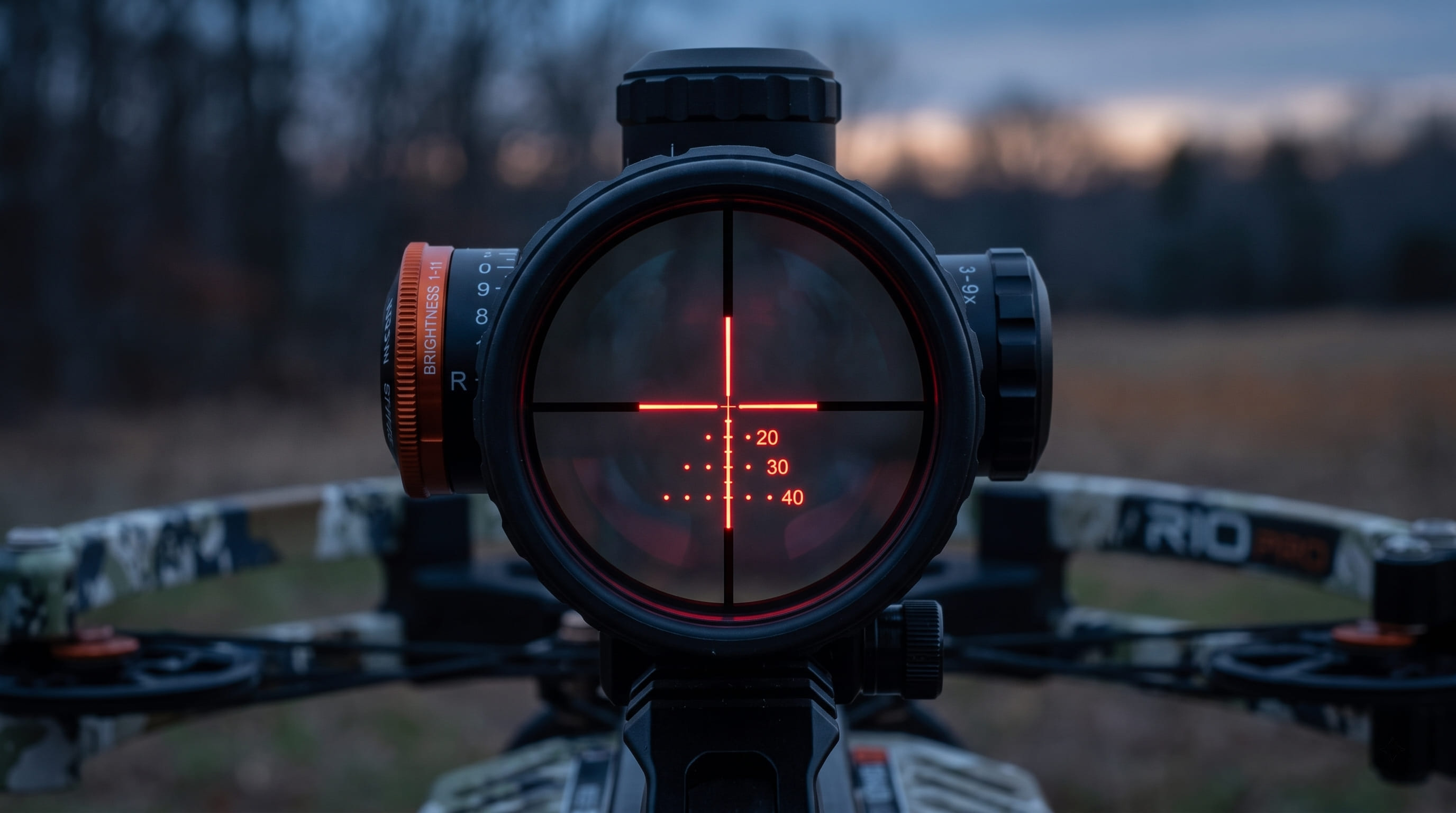

In my dawn and dusk sessions the reticle stayed clearly visible without washing out, and the multi-reticle drop lines tracked closely with my chronographed velocity data. If you later want to upgrade optics, the best crossbow scopes roundup covers the alternatives.

Is it really ready to hunt out of the box?

Yes, with the usual caveat that you still need to zero it. The scope arrived mounted and needed only final zeroing, and I timed setup at 25 minutes. Follow the manual for the final steps, and use how to sight in a crossbow scope if you have not zeroed a crossbow before.

Performance & Usability

How fast is the R10 Pro XK7 in testing?

My chronograph measured 415 to 423 FPS across five shot strings with a 400-grain bolt, so the 420 FPS rating is a fair description. For context on what those speeds mean, see how fast does a crossbow bolt travel.

How accurate is it at 60 yards?

Once zeroed, my 60-yard groups stayed inside a 2.25-inch cluster. That is competitive at this price and a direct result of the HeliCoil system's consistent draw.

How does it handle in the field?

At 6.8 lbs and 32.5 inches overall, the R10 Pro XK7 was noticeably easier to carry and shoulder across a full day of range testing than the heavier flagship-tier models I have reviewed. It is longer than the compact Ravins (the R26X is 26 inches), so it is light but not the shortest option.

How reliable is the cocking system?

Across more than 40 logged cocking and de-cocking cycles I saw no failed or inconsistent cocks. Over the full window, the promise of a fast path from box to first hunt held up under repeated use, not only on day one.

How loud is it?

Noise was my lowest category score at 6/10. I did not run a decibel comparison on the R10 Pro XK7 as I did on the R26X, R29X and R470, so I can only say that those three scored far higher for noise. If a quiet re-cock is your priority, read the Ravin R26X review.

Care and storage

Wax the string and cables every 3 to 5 shooting sessions. Because the HeliCoil system is proprietary, plan on sourcing parts through a Ravin dealer. The XK7 scope held zero throughout my testing, but check zero at the start of each season or after any hard impact in transport. At 32.5 inches and 6.8 lbs it fits a standard crossbow case and is light enough for long carries. More routine care is in how to maintain a crossbow.

Who Is the R10 Pro XK7 For?

The R10 Pro XK7 suits the buyer who values time-to-first-shot and carry weight over outright performance numbers. For the wider field, browse the compound crossbows category hub, or start with compound vs. recurve crossbow if you are new to the formats.

Best suited to:

• Hunters who want a pre-assembled package without a lengthy setup process
• Anyone who values a lightweight crossbow for all-day hunts or long walks to a stand
• Buyers who want a reliable illuminated scope included rather than sourced separately

Consider something else if:

• You need maximum speed or kinetic energy
• You are working with a tighter budget

Ravin R10 Pro XK7 vs TenPoint and Other Ravins

Here is how the R10 Pro XK7 compares with its nearest rivals, using ratings, prices and specs from each model's own review.

The R10 Pro XK7 is the cheapest Ravin here and faster than the R26X on the chronograph, but it is 32.5 inches long against the R26X's 26. Its rating is the lowest in the table, mostly because of value and noise scores. The Ravin R470 Stealth Gray sits above all of these on speed, at a higher price.

For a deeper brand-versus-brand look, read Ravin vs TenPoint.

What's Included and What Else You Need

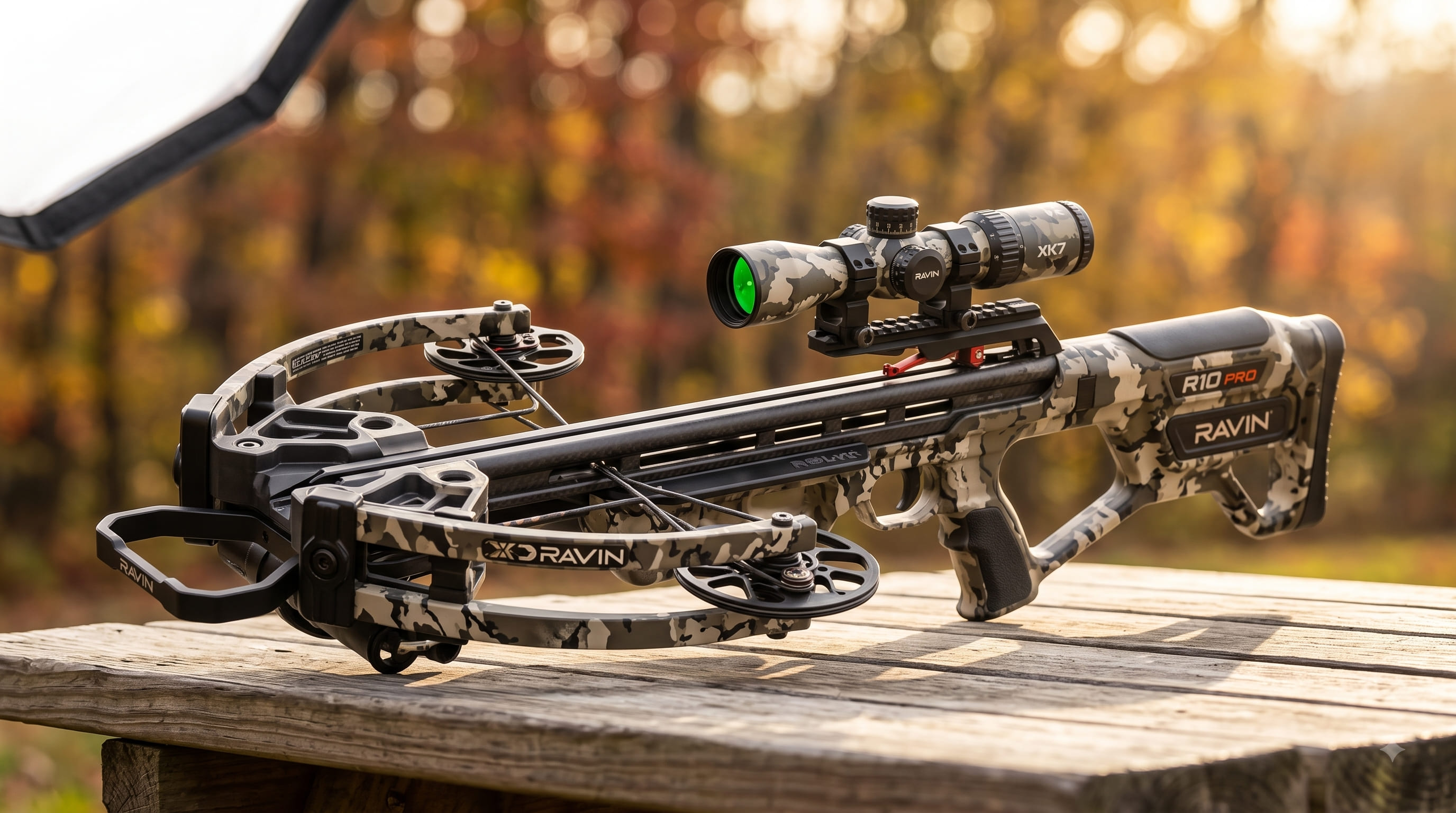

The big inclusion is the XK7 illuminated scope, which arrived mounted. I did not itemize every other item in the box, so confirm the exact contents with the seller before you order. This table separates what I can vouch for from what you should plan to buy.

Setup and First Session

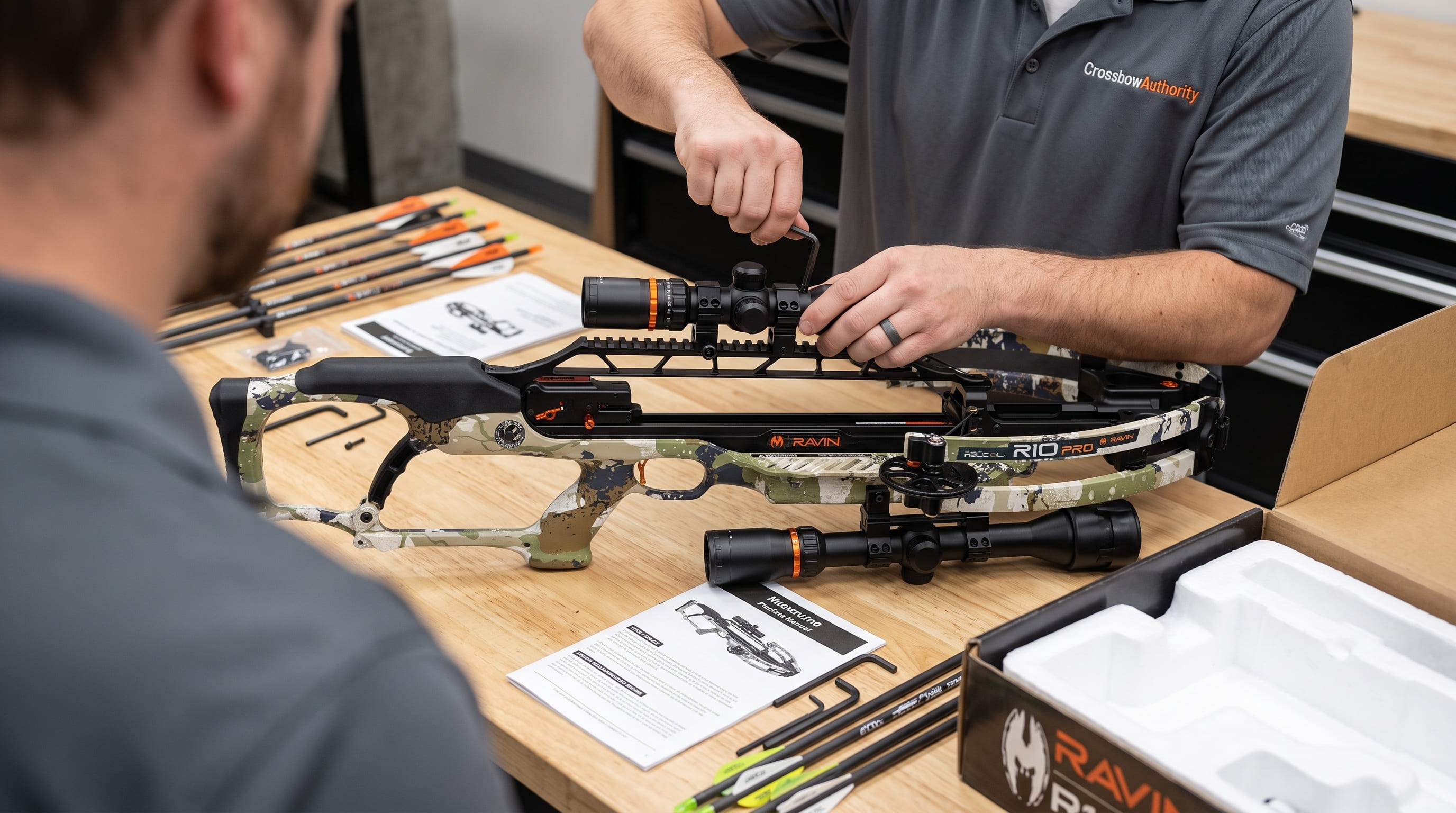

Setup was the easiest I have recorded. From opening the packaging to my first zeroed shot took 25 minutes, mainly because the scope was already mounted. This is the order I followed, and you should defer to your manual for the details.

1. Unpack and inspect the string, cables and limbs for shipping damage before anything else.
2. Check that the scope is seated firmly on the rail.
3. Cock the crossbow with the Versa-Draw system, which takes about 12 lbs of felt effort.
4. Shoot a first group, adjust the scope, and confirm zero with a second group.
5. Recheck zero after your first few shots, then again at the start of each season.

If you own a chronograph, record a few strings now. My own speeds ran 415 to 423 FPS, and a baseline lets you spot any later change.

Worked Example: Energy and Starter Cost

Kinetic energy in ft-lbs is bolt weight in grains times speed squared, divided by 450,240. With a 400-grain bolt at 420 FPS that is 400 x 176,400 = 70,560,000, divided by 450,240, or about 157 ft-lbs, in line with the 156 on the spec table. My slowest string (415 FPS) works out to about 153 ft-lbs and my fastest (423 FPS) to about 159, so the whole range sits within a few ft-lbs. The kinetic energy calculator does the same arithmetic for any bolt weight you choose.

Set that against the other Ravins. The R26X lists about 142 ft-lbs and costs $500 more at the low end of its range, while the R29X lists 180 ft-lbs and costs $1,000 more. Moving from the R10 to the R29X buys roughly 24 more ft-lbs for $1,000, so it is worth the money only if you need that energy.

For a starter kit, add one three-pack of R133 bolts ($84 to $108) and one three-pack of R102 broadheads ($45 to $55) to the crossbow. That totals $1,628 to $1,962, assuming both are compatible with your exact model and the seller does not already bundle bolts.

Symptoms and Risks to Watch

I saw none of these in my testing, but they are the checks I would run during ownership.

Who Should Skip the R10 Pro XK7

Skip it if you want the shortest frame, because the R26X is 26 inches against this crossbow's 32.5. Skip it if quiet cocking is the priority, since the R26X, R29X and R470 all scored far higher for noise. Skip it if you need maximum energy, or if you would rather save money on a simpler package. I also did not test it in extreme cold or over a full season, so I cannot speak to long-term wear beyond my three weeks.

Value for Money

At $1,499 to $1,799, the R10 Pro XK7 sits below TenPoint's TX Ultra 26.5 ($1,999 to $2,199) and well below the TRX Ultra ($3,495 to $3,515). The TX Ultra 26.5 is shorter overall (26.5 inches versus 32.5) and has TenPoint's ACUslide MAXX integrated cocking, but it costs roughly $500 more and does not ship as fully pre-assembled. The TRX Ultra is faster and more accurate at extended range thanks to its reverse-draw platform, at roughly double the price.

Value is the weakest category in my scoring (6.5/10), and it is the main reason the overall rating is 3.9 out of 5. For hunters who do not need flagship long-range performance, the speed, scope retention and fast setup I saw come at a lower price than either TenPoint option. Buyers chasing outright speed or the shortest overall length should look at those models, and budget-focused buyers will find simpler packages cheaper. See how much does a crossbow cost for the wider price picture.

At the other end of Ravin's range, the Ravin LR is the brand's long-range model with an adjustable stock and turret scope.
