Crossbow Bolt Length: Definition

Crossbow bolt length explained: why the manufacturer's stated minimum matters, how 16, 20 and 22 inch bolts differ, and how to measure one correctly.

Crossbow Bolt Length in plain terms

Crossbow Bolt Length meaning: Bolt length is the overall length of a crossbow bolt, set by the crossbow design and stated in the manual as a required length or range rather than a preference.

Also called: arrow length, crossbow bolt size, bolt size, 20 inch crossbow bolts, crossbow arrow length

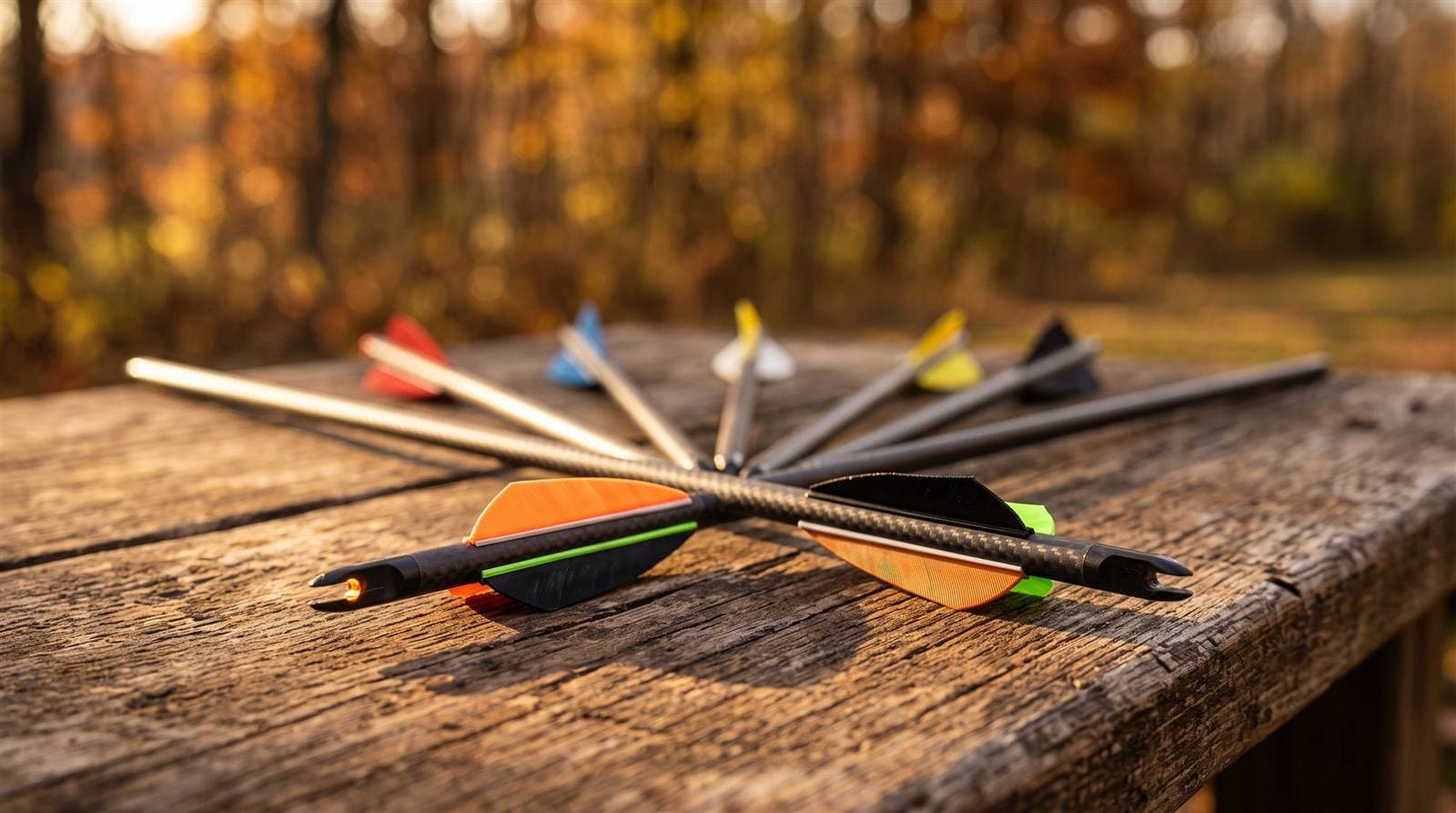

Bolt length is the overall length of a bolt, normally given in inches. Unlike arrows for a vertical bow, crossbow bolts are not cut to the shooter's draw length. Each crossbow is designed around a particular length, and the manual states it, along with a minimum bolt weight.

Lengths of the bolts we review include 16, 18 and 20 inches for the REEGOX line, 20 inches for the Ravin R133 and 22 inches for the Carbon Express PileDriver. Where you measure from matters, because makers differ on whether the nock and the tip are included, so read the convention before you compare listings.

A bolt shorter than the rated length can sit wrongly on the rail and may not seat properly against the string. A longer bolt may not fit the crossbow at all. Treat the manual as the limit.

Grains per inch: comparing bolt weight by length

Grains per inch = bolt weight ÷ bolt length

The 20-inch REEGOX at 425 grains is 425 ÷ 20 = 21.25 grains per inch, and the 20-inch Ravin R133 at a rated 400 grains (with a 100-grain field tip) is 400 ÷ 20 = 20. The numbers are close, which shows why weight and length are better judged together.

Rated lengths of the bolts we review

BoltLengthWeightNotes
REEGOX 16 in16 in368 grainsShortest variant
REEGOX 18 in18 in380 grainsMiddle variant
REEGOX 20 in20 in425 grainsLongest variant
Ravin R13320 in400 grains with a 100-grain field tipRavin platforms only
Carbon Express PileDriver22 inPer-bolt weight not publishedUniversal nock system

Why it matters

Length decides whether a bolt fits your crossbow at all. It also affects weight, which affects speed, trajectory and the point of impact. Two bolts of different lengths with the same tip will not balance in the same way.

Because length comes from the crossbow design rather than from you, it is one of the few specs with a clear right answer: the one in your manual. Buying by a length that looks right, rather than the one that is written down, is a common and avoidable error.

A longer bolt of the same construction weighs more and balances differently; check the result in the FOC calculator and the energy change in the kinetic energy calculator.

How to read it on a spec sheet

  • Find the rated bolt length in your crossbow manual before browsing listings.
  • Check whether a listing quotes length with or without nock and tip.
  • Look for a pack that offers several lengths and choose the one that matches your manual.
  • Read the weight for your specific length, because it changes with it.
  • Check any note on cut-to-length requirements. Do not cut bolts unless the maker allows it.

Common mistakes

  • Choosing a length because another crossbow uses it.
  • Shooting bolts shorter than the rated length.
  • Forgetting that weight changes between length variants.
  • Cutting bolts shorter without the maker guidance.
  • Measuring with a different convention from the listing and ordering the wrong size.

Find your correct bolt length

  1. Open your manual and write down the rated bolt length and minimum weight.
  2. Check the tip and nock convention used in the listing you are considering.
  3. Select the variant that matches the manual.
  4. Confirm the stated weight is at or above your minimum.
  5. When the bolts arrive, measure one and compare before shooting.

See it in our reviews

Frequently Asked Questions

  1. What length bolt does my crossbow need?

    The length in your crossbow manual. Bolt length is set by the crossbow design, and the manual states it alongside a minimum weight. If you cannot find it, contact the manufacturer before shooting.

  2. What are the common crossbow bolt lengths?

    The bolts we review run from 16 to 22 inches, with 20 inches common and 22 inches on the PileDriver. The right length for you depends on your crossbow, not on what is common.

  3. Can I use a shorter bolt?

    Not safely if it is shorter than the rated length. A short bolt may not seat correctly or may not be supported properly on the rail. Follow the manual and use the length it states.

  4. Can I use a longer bolt?

    Only if the manual allows it. A longer bolt may not fit the crossbow or may change balance. Use the rated length unless the manufacturer says otherwise in writing.

  5. Does bolt length change speed?

    Indirectly, through weight. A longer bolt usually weighs more, which tends to lower speed, while a shorter one weighs less. Always stay inside the weight limits in your manual.

  6. How is bolt length measured?

    Makers differ on whether they include the nock and tip. Read the listing, measure one bolt you own with the same method, and compare. If unsure, ask the seller before ordering.
