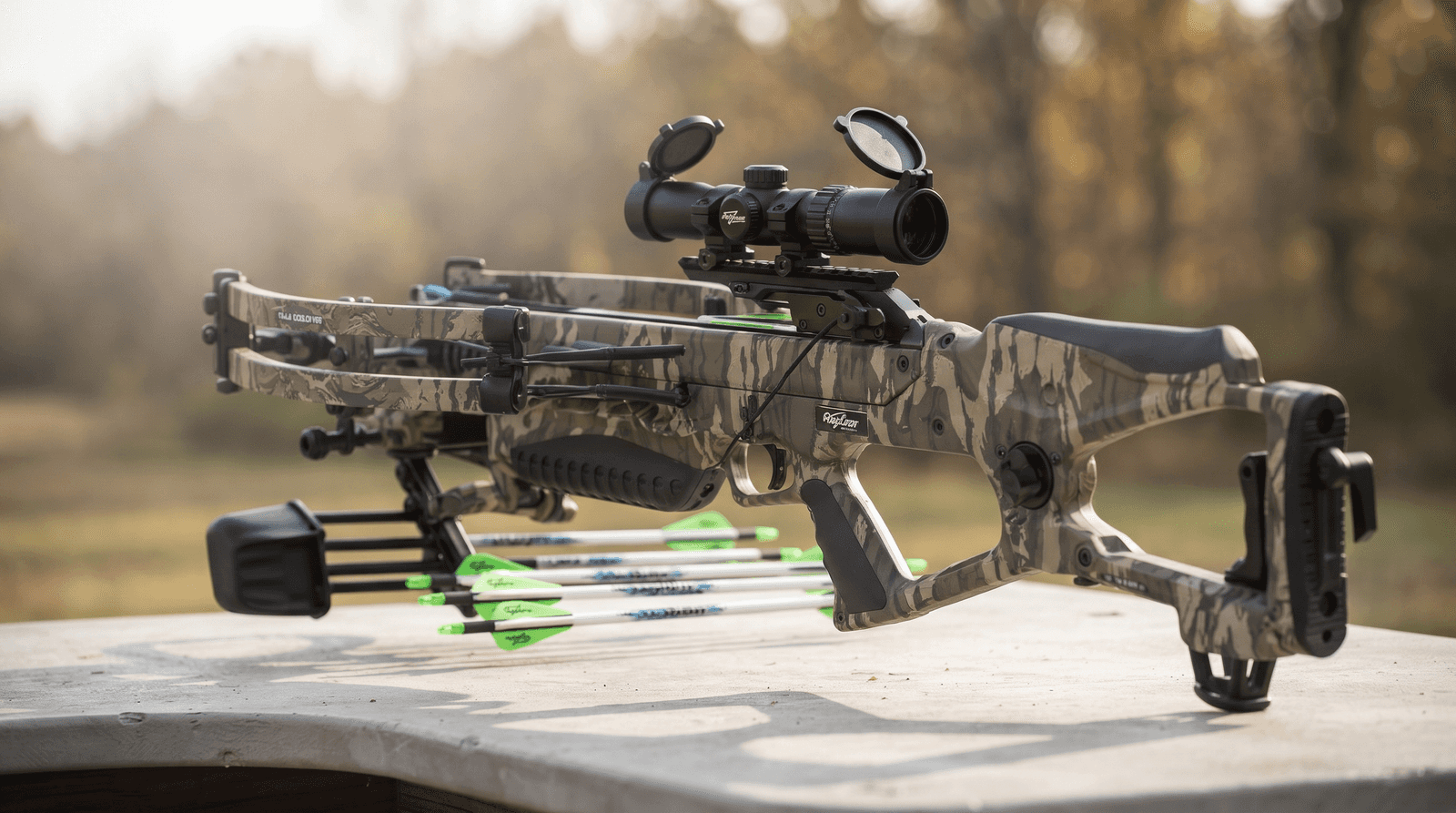

Excalibur REV X Review 2026

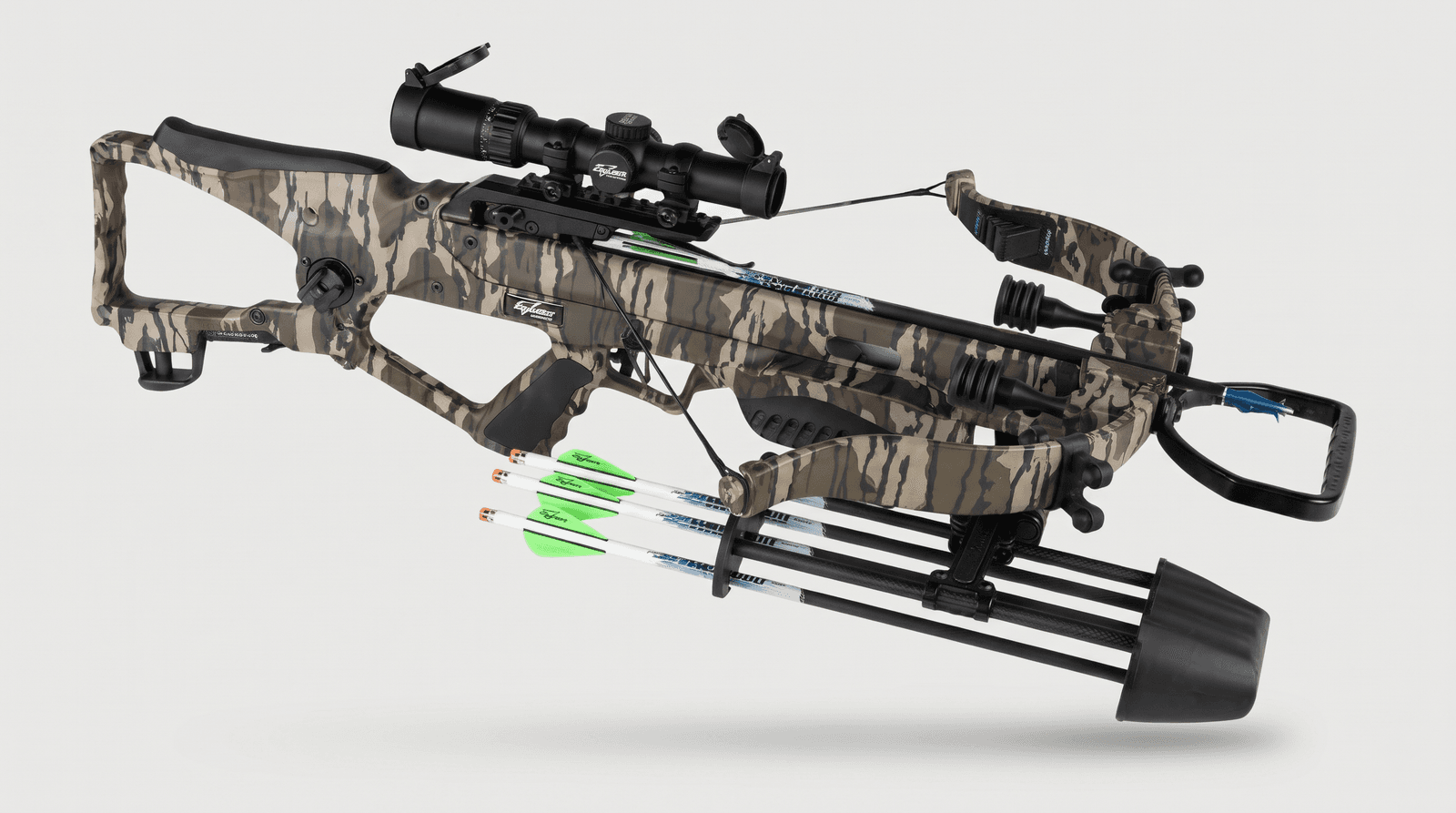

Four hundred feet per second from a recurve used to be a contradiction, and the Excalibur REV X is the crossbow that settled it: a no-cam design rated at 400 FPS that cocks with about 16 lbs of effort thanks to the built-in ChargerX crank. My verdict is that it earns its $1,569–$1,599 price for one specific buyer, the hunter who wants recurve simplicity, a dedicated dry-fire safeguard and crank cocking in a single package, and that it is a hard sell for anyone shopping on noise, width or cost. I score it 4.0 out of 5.

Excalibur rates the REV X at 400 FPS with a 350-grain arrow, built on High-Output Express recurve limbs with a 413 lb draw weight and a 15.25-inch power stroke. It is built around CeaseFire, the trigger safety that stops the crossbow from firing unless an arrow is loaded, and it ships as a complete package with the Overwatch illuminated scope. I handled it for cocking, trigger feel, features and package contents; the speed, energy, noise and accuracy figures below come from a published chronograph and range test, labelled as such, not from my own measurements.

This review covers the price, specs, speed, trigger, cocking, noise, handling, drawbacks and the rivals worth comparing, so you can decide quickly whether the REV X is the Excalibur for you or whether the lighter, cheaper Mag Air or the faster Hybrid X fits better.

Excalibur REV X Specifications

This table collects the Excalibur REV X specs that matter when you compare it with other hunting crossbows. Speed, draw weight and dimensions are Excalibur's figures; the measured column notes where a published test landed.

What I Like

The REV X's strengths are the ones a recurve usually lacks, which is the whole point of the design.

• Compound speed from recurve limbs. Excalibur rates it at 400 FPS with a 350-grain arrow, and a published chronograph test recorded about 392 FPS with the supplied 350-grain arrows and 367 FPS with a 420-grain hunting-weight bolt.
• Cocking that anyone can manage. The integrated ChargerX crank brings the 413 lb draw down to about 16 lbs at the handle, and its internal brake means the crank holds wherever you stop. In my handling it was smooth through the full stroke with no slack or lurch at the latch.
• CeaseFire. The trigger will not release unless an arrow is seated, the safety is off and the trigger is pulled. For a recurve storing this much energy, that safeguard is worth paying for.
• A light, clean trigger. A published test averaged 1.28 lbs of pull, and it felt crisp and short in my hands with no creep I could detect.
• Nothing to add on day one. Scope, rings, crank, arrows, field points, quiver and suppressors are all in the box.

Potential Drawbacks

The weaknesses are real and they are the reason the score is 4.0 rather than higher.

• It is loud. With no cams and 413 lbs of limb, a published test measured about 106 dBA with a 420-grain bolt. The R.E.D.S. suppressors and sound deadening system help, but this is not a quiet crossbow. See the noise and vibration entry for why recurves tend this way.
• It is wide. At 25.5 inches at rest and 20.5 inches cocked, it is wider than most compounds in my library. Measure your blind window before you buy.
• The trigger safety is manual. It does not engage automatically when the string latches, so you must set it yourself every time. One published review wanted an auto-engaging safety and I agree.
• Price. At $1,569–$1,599 it costs about twice as much as the Barnett Hyper Whitetail 410, a compound with a higher rated speed.
• Four arrows. Enough to zero, not enough for a long practice session. Budget for a spare half-dozen.

Key Features Explained

What does CeaseFire do?

Dry-firing means releasing the string with no arrow loaded, and on a 413 lb recurve the result can be a broken string, cracked limbs and injury. CeaseFire is a mechanical interlock in the trigger system that blocks the release unless an arrow is seated against the string, the safety is off and the trigger is pulled. The practical consequence, which the Hybrid X review also found, is that arrows must seat cleanly: test every arrow you intend to hunt with on the range before you rely on it.

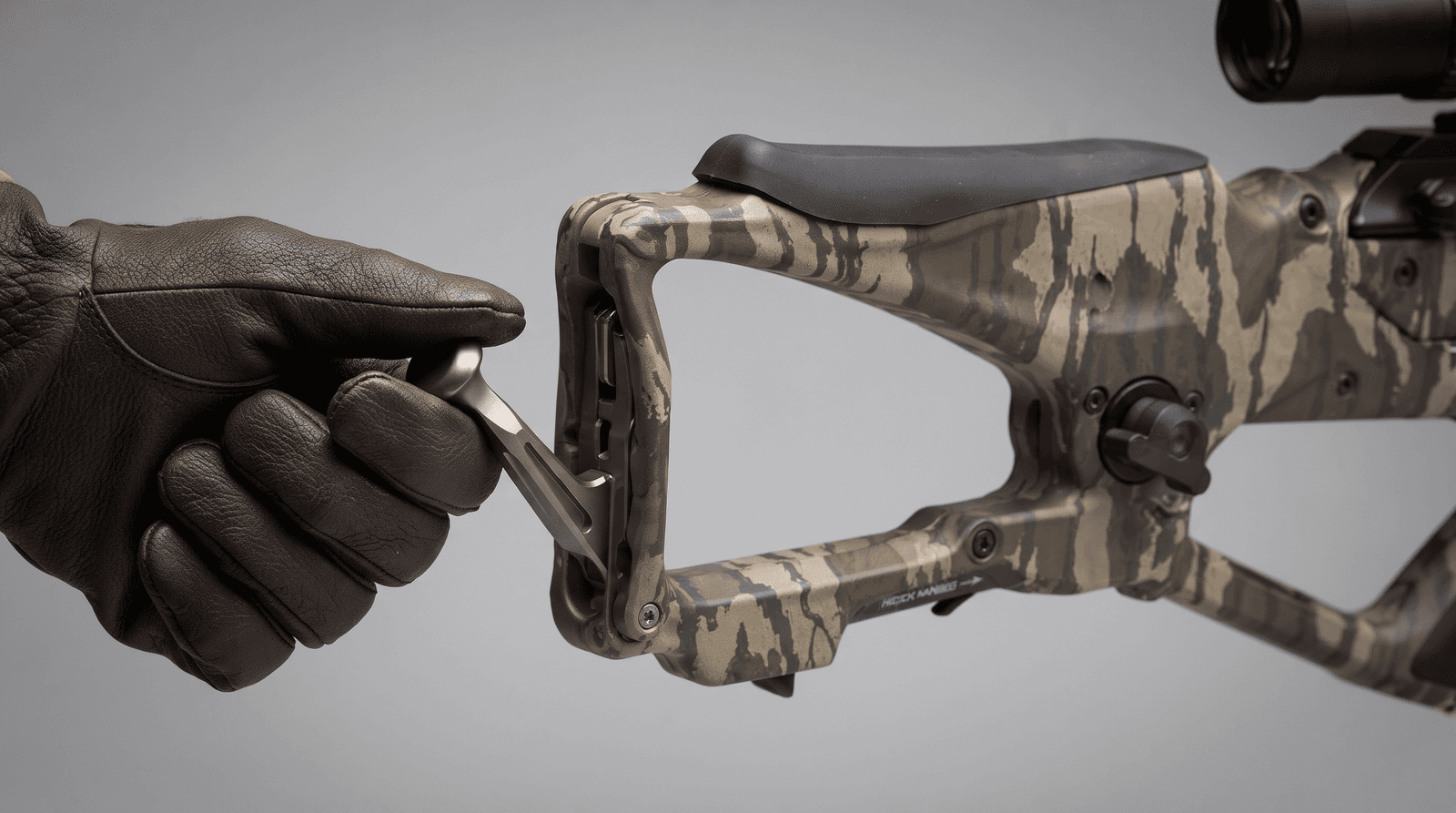

How does the ChargerX crank work?

The ChargerX is an integrated crank built into the stock. You fold out the handle, hook the string, and wind; the gearing reduces 413 lbs of draw to about 16 lbs of effort at the handle. The internal brake is the detail I value most: stop halfway and the crank stays put rather than spinning back. It also lets you de-cock by winding the string forward, so there is no need to fire a discharge bolt at the end of a hunt. Our how to de-cock a crossbow safely guide covers the general procedure; follow Excalibur's manual for the exact sequence on this model.

What is the recurve advantage here?

A recurve has no cams or cables, so there is no timing to drift and the single string can be changed at home with a stringing aid rather than in a press. Our how to string a recurve crossbow guide shows the procedure. The REV X's High-Output Express limbs reach compound-class speed by brute draw weight, which is exactly why the crank, the width and the noise all come as part of the deal.

What comes with the Overwatch scope?

The Overwatch is an illuminated multi-reticle scope mounted in 30 mm rings. Its reticle is speed-rated, so set it to the REV X's actual speed with your hunting arrows rather than the 400 FPS headline; the scope speed matcher helps with that step, and how to sight in a crossbow scope covers zeroing.

Performance & Usability

How fast is the REV X?

Excalibur rates it at 400 FPS with a 350-grain arrow. A published chronograph test put it at about 392 FPS with the supplied 350-grain Proflight arrows, 367 FPS with a 420-grain bolt and 342 FPS with a 500-grain bolt, which works out to roughly 120 to 130 ft-lbs of kinetic energy across those weights. The kinetic energy calculator turns any of those speeds and your arrow weight into an energy figure. The lesson is the usual one: the 400 FPS headline needs the light arrow, and a hunting-weight bolt lands in the 360s.

How accurate is it?

The same published test recorded a maximum shot deviation of 0.625 inch at 35 yards, which is tight for any crossbow and very tight for a recurve. In my handling the light 1.28 lb trigger (published average) and the solid, slightly front-heavy balance made it easy to hold steady; a crisp trigger on a 7 lb platform is a large part of why recurves of this class group well.

How loud is it?

Loud. A published test measured about 106 dBA with a 420-grain bolt, and that matches my impression of a sharp, hard report compared with the compounds I have reviewed. I scored noise at 6 out of 10. If a quiet shot matters to you, the Hybrid X is a little better and most reverse-draw compounds are better still.

What is it like to carry and handle?

At 7 lbs bare and 9 lbs with the scope, quiver and arrows, the REV X is not light, and the 25.5-inch width at rest is the dimension you will notice in a blind or on a narrow trail. It is 33 inches long, which is manageable. The polymer stock and forearm feel rigid and the safety wings keep fingers below the string path. The draw was consistent across the cycles I ran on the crank, and I never had the handle slip.

Who Is the REV X For?

The REV X is the Excalibur recurve for hunters who want speed without giving up the no-cam design.

Best suited to:

• Hunters (where legal) who want recurve simplicity with compound-class speed and energy
• Anyone who needs crank cocking, because of strength, shoulder issues or simply preference, and wants it built in
• Owners who value CeaseFire and an integrated way to de-cock without firing

Consider something else if:

• You hunt from tight blinds or want a quiet crossbow
• You want the lightest carry, where the Mag Air at 4.9 lbs is the better Excalibur
• You are shopping on price, where a mid-range compound gives similar speed for half the money

For more options in this format, browse the recurve crossbows category. Check local rules before hunting, because equipment laws vary by area.

Excalibur REV X vs Alternatives

The rivals below are the ones I compare it with most, using figures from their own review files.

Against the Hybrid X. The Hybrid X is 35 FPS faster on paper, a little quieter and about $400 to $500 more, and it adds cams that need timing. If you want the Excalibur with the fewest moving parts, the REV X is the one.

Against the Mag Air. The Mag Air is 2.1 lbs lighter and about half the price, but it is 95 FPS slower and you cock it with a rope. The REV X is the hunting tool; the Mag Air is the light recurve for shorter ranges.

Against the Whitetail 410. The Barnett is a budget compound with a higher rated speed, and in my Mag Air review it was the more accurate crossbow at 60 yards. It lacks an integrated crank and CeaseFire. If those two features are not on your list, it is the better value.

For a wider view, see best crossbows for deer hunting and compound vs recurve crossbow.

What Is in the Box and What Else You Need

The REV X package is unusually complete, which matters at this price.

Setup and First Session

1. Read the Excalibur manual for the ChargerX, CeaseFire and the de-cock sequence before you cock anything.
2. Seat each arrow you intend to use. CeaseFire depends on the nock sitting cleanly against the string; set aside any arrow that does not.
3. Cock with the crank, set the manual safety, and get used to the fact that it does not set itself.
4. Zero the Overwatch at 20 yards, then confirm at 30 and 40. Set the reticle speed ring to the speed of your actual hunting arrow, not the 400 FPS headline.
5. De-cock with the crank at the end of the session rather than firing into a target, and note how the sequence feels so it is automatic on a cold morning.

Ownership and Care

A recurve has no cams to time, so the routine is short: wax the string as the manual directs, lubricate the rail, inspect the serving and limbs, and store it de-cocked. The 413 lb draw puts heavy load through the string, so inspect it more often than you would on a lighter recurve and keep a spare string and stringing aid in the case. Our how to maintain a crossbow guide covers the full routine. Excalibur lists a limited lifetime warranty; confirm the terms and registration requirements with Excalibur before you buy.

Worked Example: What the Premium Over a Mag Air Buys

The REV X costs $1,569–$1,599 and the Mag Air costs $785–$815, a gap of $784 at both ends. For that you get 95 FPS more rated speed (400 minus 305), a crank that cuts cocking effort from a 136 lb rope pull to about 16 lbs, CeaseFire in place of the Mag Air's Guardian system, and an illuminated scope. You give up 2.1 lbs of carry weight (7 minus 4.9) and a quieter shot. If you hunt, the speed and the crank are worth the gap; if you shoot targets inside 40 yards, they are not.

Who Should Skip the REV X

• Hunters in tight blinds or anyone who needs a narrow crossbow
• Anyone for whom shot noise is a deciding factor
• Buyers who want the lightest possible carry
• Shoppers who would be satisfied by a mid-range compound at half the price

Value for Money

At $1,569–$1,599 the REV X is priced like a premium compound, and it has to justify that against the Hybrid X above it and the Barnett Hyper Whitetail 410 far below it. What it offers that neither does in the same way is the combination of recurve maintenance, an integrated crank and CeaseFire in one package with nothing left to buy. I score value at 7 out of 10: fair for the buyer who wants exactly that combination, poor for anyone who only wants 400 FPS.

Where the Excalibur REV X ranks

For a direct head-to-head, see Compound vs Recurve Crossbow Compared.
