Buying a Ravin scope is less about magnification and more about matching the right model to your crossbow's speed rating. Ravin's illuminated crossbow scopes pair a red and green reticle with 20 to 100 yard aimpoints and FPS adjustment, they cost $369.99 to $469.99 depending on the model, and we rated the range 4.3 out of 5.
This Ravin crossbow scope review is for Ravin owners deciding whether the brand-matched scope is worth the premium over a generic option, and for anyone who wants to avoid ordering the wrong speed rating. Because specifications vary by model, confirm your exact model number and compatibility before buying.

Ravin Illuminated Scopes Specifications
These are the key Ravin scope specs. They vary by model, so check the model number of yours.
| Spec | Detail |
|---|---|
| Reticle | Illuminated, 20-100 yards (450 and Speed Lock models) or 30-100 yards (550 model) |
| Illumination | Red and green |
| FPS adjustment | Yes |
| Speed Lock | Offered on the separate Speed Lock models (450 FPS R166 and 550 FPS R160) |
| Durability | Fully coated lenses; fog-proof, waterproof, shock and recoil proof |
| Compatibility | Speed-rated; the 450 FPS version is for Ravins shooting slower than 450 FPS and is not compatible with the R500, R470, R29X or R18; Ravin says the 550 version is the scope included with its 450 FPS crossbows |
| Examples | 100-Yard Illuminated 450 Scope (R170) and 550 Scope (R168) |
Magnification, objective size, eye relief and weight are not listed on Ravin's product pages for these scopes. That gap makes it harder to compare against other scopes on eye relief and weight.
What We Like
The strengths here are about convenience and matching, not raw optical numbers.
- Two illumination colors. The red and green reticle lets you pick the color that stands out against the background and light. Red usually contrasts with green and brown backgrounds, while green can be easier on the eyes in some light.
- Aimpoints built for Ravin ballistics. Ravin lists a 20 to 100 yard reticle matched to its crossbow trajectory, which is simpler than working out holdovers on a generic reticle.
- FPS adjustment. You can tune the reticle to your crossbow's actual arrow speed, which matters because aimpoints only line up when the speed is right.
- Rugged construction. Ravin describes the scopes as fully coated, fog-proof, waterproof, and shock and recoil proof.
- Brand-matched fit. A scope designed for Ravin means less compatibility guesswork than adapting a generic rifle scope.
Worth knowingRed and green illuminated reticle with 20 to 100 yard aimpoints and FPS adjustment. Confirm the speed rating matches your crossbow before you choose a model.
Potential Drawbacks
These are the issues we would weigh before ordering, along with the simplest way around each.
- Premium price. At $369.99 to $469.99 (Ravin list), these scopes cost far more than budget options like the CVLIFE 3-9x40 or the TruGlo 4x32 Crossbow Scope.
- Easy to buy the wrong one. The scopes are speed-rated and model-specific. Ravin's 450 FPS scope is not compatible with the R500, R470, R29X or R18, so match the scope to your crossbow.
- Missing optical specs. Ravin's pages do not list magnification, objective size, eye relief or weight.
- Less flexible across brands. Reticles built around Ravin ballistics are best suited to Ravin crossbows.
Key Features Explained
Four features decide whether this scope suits you: the illumination, the reticle with FPS adjustment, Speed Lock and compatibility.
How do the red and green reticles help?

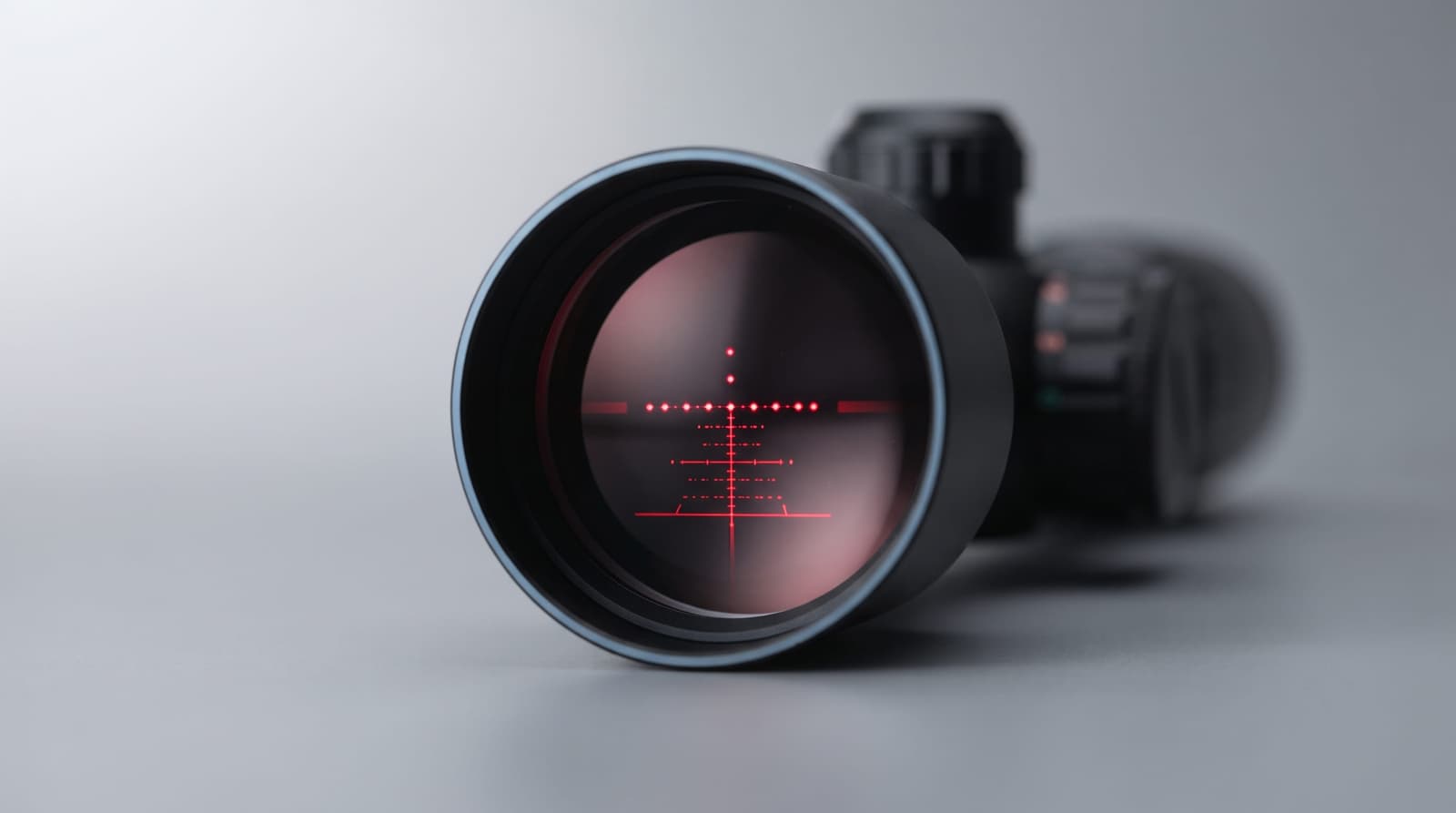

An illuminated reticle glows so it stays visible in low light, such as dawn and dusk. Having both colors lets you choose the one that contrasts best with your background. Keep the brightness as low as you can, since a very bright reticle can bloom and make aiming less precise.
What does the 20-100 yard reticle with FPS adjustment do?
The reticle places aimpoints for different distances based on a crossbow's arrow trajectory. FPS adjustment fine-tunes those aimpoints to your actual arrow speed. Check your real arrow speed if you can, because a reticle set for the wrong speed will print high or low at distance.
Our bolt drop chart shows how much drop changes with speed, and our scope speed matcher lists which reviewed scopes cover your speed.
Our guide on how fast a crossbow bolt travels explains what raises or lowers your real arrow speed, and the scope glossary entry covers how a crossbow sight works in general.

What is Speed Lock?
Ravin describes Speed Lock, offered on both its 450 FPS (R166) and 550 FPS (R160) Speed Lock scopes, as a locking ring that lets you lock in your FPS adjustment so the scope stays dialed in. Ravin does not say it locks windage.
Which crossbows is it compatible with?
The scopes are designed for specific speed ranges and models, and the 450 FPS version carries the exclusion list in the spec table above. Ravin's 550 FPS page says that version is the scope included with its 450 FPS crossbows, and the product pages for the Ravin R29X and Ravin R470 both list a 100-yard illuminated 550 scope in the box. Beyond that, the 550 page gives no model list, so check your crossbow's exact model and speed rating with Ravin before ordering.
How do I choose between the 450 and 550 versions?
Start with your crossbow's model and speed rating, not the price. The 450 FPS version is meant for Ravins shooting under 450 FPS, and the 550 FPS version is rated for faster arrows and ships with Ravin's 450 FPS crossbows. Ravin lists the 100-Yard Illuminated 450 Scope (R170) and 550 Scope (R168) at $369.99 each, while the separate Speed Lock models in both speed ratings are listed at $469.99. If you plan to change bolts or heads later, remember that any change in arrow speed means revisiting the Ravin scope speed settings.
Performance & Usability
How good is the illumination at dawn and dusk?
The illuminated reticle is the main benefit at dawn and dusk; use the lowest brightness that stays clearly visible to avoid bloom. Ravin lists fully coated lenses and fog-proof construction.
How do I zero it?
Zeroing starts with the instructions that come with the scope: confirm your zero at a known distance before relying on the other aimpoints. Aimpoints depend on the FPS setting matching your crossbow. Our guide on sighting in a crossbow scope walks through the general process step by step.
Ravin does not list a click value for these scopes. Turret adjustments on crossbow scopes are often given in MOA, so check the unit in the scope's instructions before you dial a correction.
What about mounting and setup?
Make sure the scope seats firmly in your crossbow's rail, and recheck the zero after the first few shots, since recoil can loosen mounts. A brand-matched scope avoids the fitting problems that come with adapting a rifle scope.

Does it need any care?
Ravin describes the scopes as waterproof and shock and recoil proof. Even so, recheck zero after rough handling or transport.

Who Is a Ravin Illuminated Scope For?
It suits Ravin owners who value a simple sight-in and matched aimpoints. For a wider view, the crossbow scope reviews page lists every scope we have reviewed, scored on the same criteria.
Best suited to:
- A Ravin owner who wants a scope matched to the crossbow's ballistics
- A hunter who shoots in low light and wants an illuminated reticle
- Someone who values a simple sight-in workflow with aimpoints matched to the crossbow's speed
Consider something else if:
- You want a scope with published magnification and eye relief
- You want a lower price, or a scope you can move between crossbow brands
Ravin Scope vs Other Crossbow Scopes
Here is how the Ravin range compares on score with other scopes we have reviewed, using each review's own rating.
| Scope | Rating | Buy |
|---|---|---|
| Ravin Illuminated Crossbow Scope | 4.3 | Check price on Amazon |
| CVLIFE 3-9x40 | 4.1 | Check price on Amazon |
| TruGlo 4x32 Crossbow Scope | 4.2 | Check price on Amazon |
| Vortex Crossfire II 2-7x32 | 4.5 | Check price on Amazon |
| TenPoint EVO-X Marksman Elite | 4.5 | Check price on Amazon |
| Burris Oracle X | 4.4 | Check price on Amazon |
The Ravin range is mid-priced among these, and its rating reflects the compatibility and missing-spec issues as much as the optics. Our best crossbow scopes roundup ranks these and other scopes by budget and use.
Ravin's Other Crossbow Scopes
The illuminated 100-yard scopes are Ravin's mid-range optics. Ravin also sells two scopes that answer the main complaint on this page, the missing magnification figure, at a higher price. Figures are from Ravin's product pages.
| Ravin scope | Aiming and speed setup |
|---|---|
| 100-Yard Illuminated 450 (R170) | 20-100 yd lit reticle, FPS adjustment |
| 100-Yard Illuminated 550 (R168) | 30-100 yd lit reticle, FPS adjustment |
| Speed Lock 450 and 550 (R166, R160) | 20-100 yd lit reticle, locking FPS ring |
| Adjustable Turret Scope (R162) | 1-8x24, one crosshair, yardage turret with sight tapes, 10 red/green levels |
| Integrated Garmin Xero X1i (R189) | 3.5x, built-in rangefinder, two AAA lithium cells |
Ravin lists no magnification for the three illuminated 100-yard models; only the turret scope and the Xero X1i publish one.
The Adjustable Turret Scope suits a shooter who prefers one crosshair and dialing to holding over on aimpoints. The Xero X1i is a rangefinding scope, which removes the separate rangefinder from your pack at a much higher price than the illuminated models.
What's Included and What Else You Need
Ravin does not give a full parts list, so the items that ship with a given model are not confirmed. Confirm the contents with the seller. What you should plan around is the match between scope, crossbow and arrow speed.
- The right speed rating. Ravin sells scopes rated for 450 and 550 FPS, and they are not interchangeable.
- Your crossbow's exact model. Some Ravins cannot take the 450 FPS scope; the table below lists the models we have reviewed.
- A known arrow speed. FPS adjustment only helps if you set it to your real speed.
- A rail that seats the scope firmly. Recoil can loosen mounts, so recheck zero after the first few shots.
Compatibility by Model
This table applies Ravin's stated rule to the Ravin crossbows we have reviewed. It is a starting point, and the final check is with Ravin or the seller.
| Crossbow | 450 FPS scope | Buy |
|---|---|---|
| Ravin R10 Pro XK7 | Not on the excluded list; confirm | Check price on Amazon |
| Ravin R26X | Not on the excluded list; confirm | Check price on Amazon |
| Ravin R29X | Not compatible | Check price on Amazon |
| Ravin R470 | Not compatible | Check price on Amazon |
The Ravin R10 Pro XK7 already ships with an illuminated Speed Lock scope, and the Ravin R26X comes with a 100-yard illuminated scope (Ravin lists Speed Lock on its XK7 package), so a separate purchase mostly matters for upgrades or replacements.
Setup and First Session
- Confirm the model and speed rating before you open the box.
- Seat the scope firmly in the rail and tighten per the instructions that come with it.
- Set the FPS adjustment to your crossbow's real arrow speed with the bolt you hunt with, using a real speed reading where possible.
- Zero at a known distance, then use the other aimpoints.
- Start with the lowest illumination that stays clearly visible, then recheck zero after the first few shots.
Worked Example: What the Premium Costs
Ravin lists the 100-Yard Illuminated 450 Scope (R170) and 550 Scope (R168) at $369.99 each, and the Speed Lock models at $469.99. The CVLIFE 3-9x40 costs $59.39.
A wrong order is the costliest mistake here. Buying a $369.99 scope that does not fit an R29X or R470 means a return and a second purchase, which is why we put the compatibility check before everything else.
Symptoms and Risks to Watch
| Symptom or risk | What to check | What to do |
|---|---|---|
| Impact is high or low at distance | FPS setting against real arrow speed | Reset the FPS adjustment to a real speed reading |
| Zero shifts | Mount seating | Retighten per instructions and recheck zero |
| Reticle blurs or blooms | Illumination brightness | Lower it to the dimmest clear setting |
| Scope will not fit your model | Speed rating | Confirm before opening; do not force it |
Who Should Skip the Ravin Scope
Skip it if you shoot a non-Ravin crossbow, because the reticle is built around Ravin ballistics. Skip it if you want listed magnification, eye relief and weight, as Ravin does not list those for these models. Skip it if you are on a tight budget. Fit beyond Ravin's own compatibility statements is not confirmed here.
Value for Money
At $369.99 to $469.99 (Ravin list), a Ravin illuminated scope is a premium accessory. Budget scopes like the CVLIFE 3-9x40 ($59.39) cost a fraction of that but lack a crossbow-specific reticle.
The extra money buys a reticle matched to Ravin ballistics, illumination in two colors, and FPS adjustment. Buyers who already own a Ravin and want the simplest sighting setup get the most from it. Our guide to crossbow costs shows where a scope fits in a full setup budget.
To check whether the Ravin Crossbow Scope is calibrated for your crossbow's speed, use the scope speed matcher; the bolt drop chart shows where its marks should land. Every other model reviewed in this class is compared on the crossbow scopes & optics page.
Where the Ravin Crossbow Scope ranks
The Ravin Crossbow Scope is discussed in How Far Can a Crossbow Shoot? Max vs Ethical Range, Ravin Crossbow Problems: Causes & Fixes, Best Ravin Crossbows in 2026, Ranked and How to Choose a Crossbow Scope. For a direct head-to-head, see Ravin R29X vs R26X: Which to Buy.
Ravin Crossbow Scope Review: Final Verdict
Ravin Crossbow Scope
4.3 / 5 — Is it worth buying?
Ravin's illuminated scopes suit Ravin owners who want a reticle matched to their crossbow's ballistics, with red or green illumination and FPS adjustment. They cost well above generic scopes at $369.99 to $469.99 (Ravin list), the speed-rated compatibility means you must match the scope to your model, and Ravin does not publish magnification, objective size, eye relief or weight. This accessory review has no accuracy or noise categories: aiming precision is reflected in Reticle & Aimpoints, scored from Ravin's listed features, and a scope adds no shot noise.
Best for
Ravin owners who want a brand-matched illuminated reticle with FPS adjustment
Skip if
You want a listed magnification, a lower price, or a scope that fits multiple crossbow brands
Score breakdown
- Reticle & Aimpoints4.5/5
- Illumination4.5/5
- FPS Adjustment4.4/5
- Build Quality4.4/5
- Value for Money3.8/5
- Ease of Setup4.0/5
Typical price
$369.99–$469.99
Frequently Asked Questions
How much does a Ravin illuminated crossbow scope cost?
Ravin lists them between $369.99 and $469.99 depending on the model. Ravin lists its 100-Yard Illuminated 450 Scope at $369.99, and the Speed Lock models at $469.99. Check the current price before you order, since prices change.
Is the scope compatible with my Ravin?
It depends on the model and speed rating. Ravin states its 450 FPS scope is not compatible with the R500, R470, R29X or R18. Confirm your crossbow's model against Ravin's compatibility information before buying.
What does FPS adjustment do?
It adjusts the reticle's aimpoints to match your crossbow's arrow speed, so the distance markers line up with where the arrow lands. A real speed reading from your own bolts gives you the best number to set.
Can I use the red and green illumination in daylight?
Illumination helps most in low light, though Ravin says the scope is also usable in daytime. In bright daylight the reticle is usually clear without it; the lowest visible brightness is usually the most comfortable setting.
What magnification does the Ravin scope have?
Ravin's product pages do not list magnification, objective size, eye relief or weight for the illuminated 100-yard and Speed Lock scopes. If you want a stated figure, Ravin lists its Adjustable Turret Scope at 1-8x24 and its Integrated Xero X1i at 3.5x.
What is Speed Lock?
Ravin describes Speed Lock as a locking ring that lets you lock in your FPS adjustment so the scope stays dialed in. It is offered on the separate 450 FPS and 550 FPS Speed Lock models.
Can I use a Ravin scope on a TenPoint or other brand?
We would not. The reticle is built around Ravin ballistics, so on a non-Ravin crossbow the aimpoints may not line up with your bolt drop. If you shoot another brand, choose a scope made for your crossbow's speed instead.
Does the Ravin 450 FPS scope fit the R29X or R470?
No. Ravin states the 450 FPS scope is not compatible with the R500, R470, R29X or R18. Confirm the right speed-rated model with Ravin or the seller.
How much more is the Speed Lock model than the standard scope?
Ravin lists the standard 450 and 550 scopes at $369.99 each and the Speed Lock models at $469.99, so Speed Lock adds $100.
How much more does a Ravin scope cost than a budget scope?
Against the CVLIFE 3-9x40 at $59.39, the $369.99 Ravin scope is far pricier. That premium buys a Ravin-matched reticle, two colors and FPS adjustment.
How do I set the FPS adjustment correctly?
Use your crossbow's real arrow speed, ideally from a real speed reading, and zero at a known distance. Aimpoints only line up when the FPS setting matches how fast the arrow actually flies.
Related Reviews

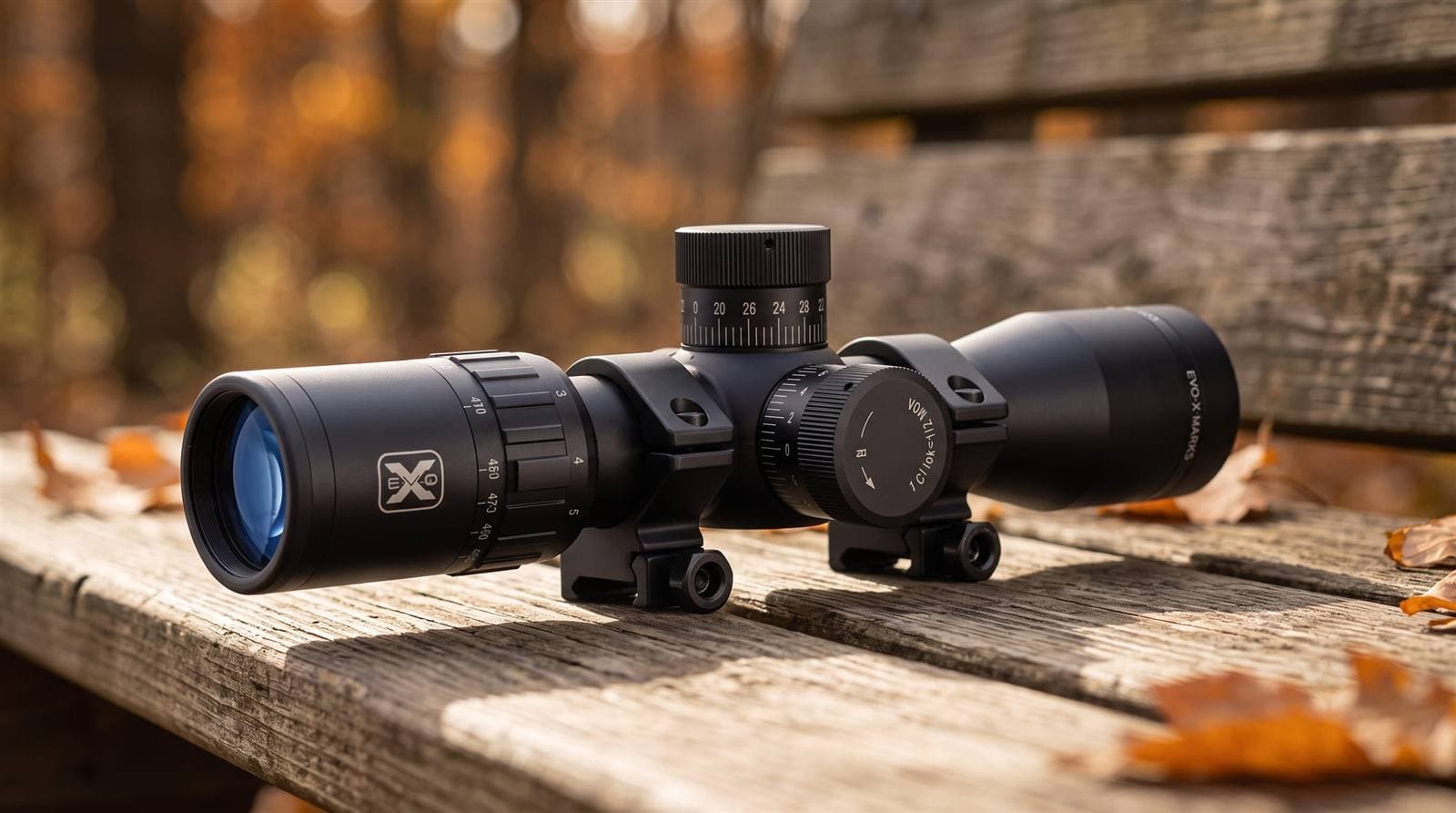

4.5TenPoint EVO-X Marksman Elite
A glass-reticle crossbow scope on a 30mm aluminum tube that covers a wide speed band. It offers premium optics without rangefinding electronics.
Read review

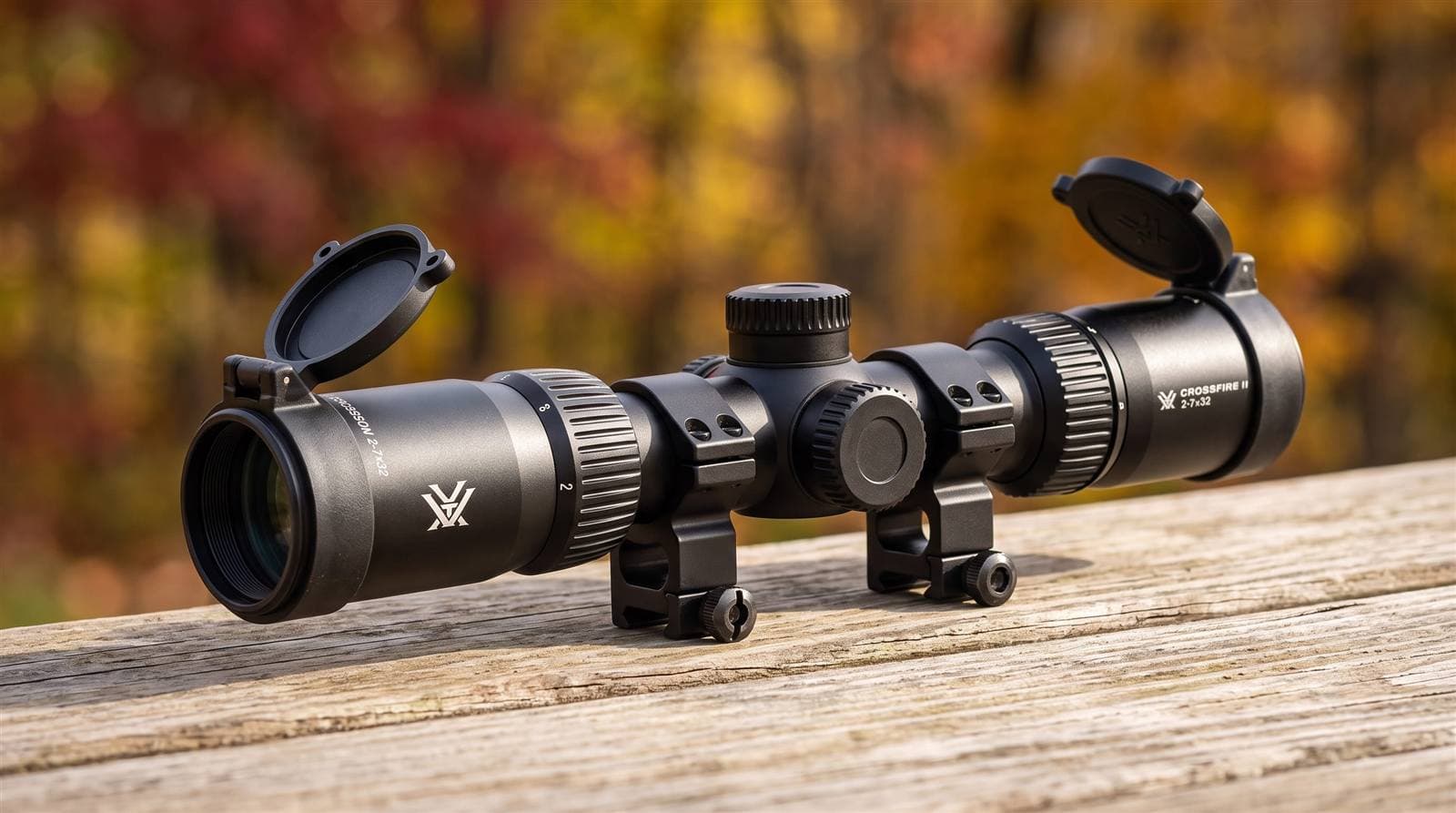

4.5Vortex Crossfire II 2-7x32
